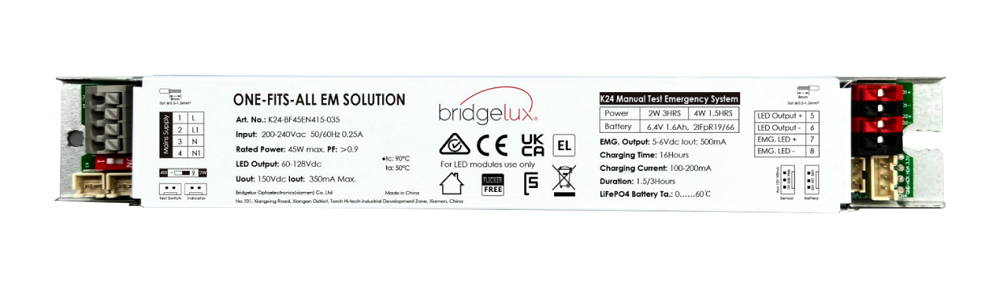

Fanxstar innovative emergency lighting solution: Bridgelux K24 2-in-1 intelligent emergency LED driver power supply

In the field of emergency lighting, the complexity of installation has always been the pain point faced by the luminaire manufacturer. The conventional solution requires the independent installation of a regular power supply and an emergency driver, which not only occupies space but also increases the difficulty of wiring and the risk of failure. Fanxstar K24 2-in-1 intelligent emergency driver power supply has completely restructured the design logic of emergency lighting, achieving a revolutionary breakthrough with an innovative framework of “one core, dual drives”.

What is the base logic of Fanxstar K24 emergency lighting solution?

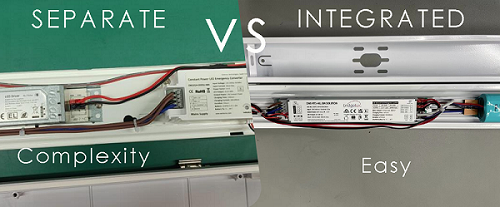

Fanxstar K24 adopts an All-in-one integrated design, a single module simultaneously undertakes the dual functions of regular power supply and emergency power supply. Compared with the traditional two power supply, no cross-interference of lines, and it doesn’t need the additional emergency module wiring. The simple and easy installation method can greatly reduce the installation time. The 2-in-1 emergency kit can enhance the stability of the lighting. And belong to its thin body, which can be directly embedded in the lamp cavity or narrow line groove, reserving more design freedom for the manufacturers.

How many solutions can be provided when the main power is off?

When the outage occurs, the K24 emergency kit will switch to emergency mode and provide two lighting solutions:

3-hour long-lasting battery life: 2W constant power output, meeting basic lighting requirements for fire evacuation.

1.5-hour strong light guarantee: 4W high-brightness output, fit for key areas like operating rooms and escape routes.

Fanxstar K24 adopts wide-constant power technology, which is perfectly compatible with various LED light strings, avoiding brightness attenuation caused by voltage fluctuations. The emergency kit's lifespan can reach up to 5 years and ensure stable performance throughout the lighting fixtures.

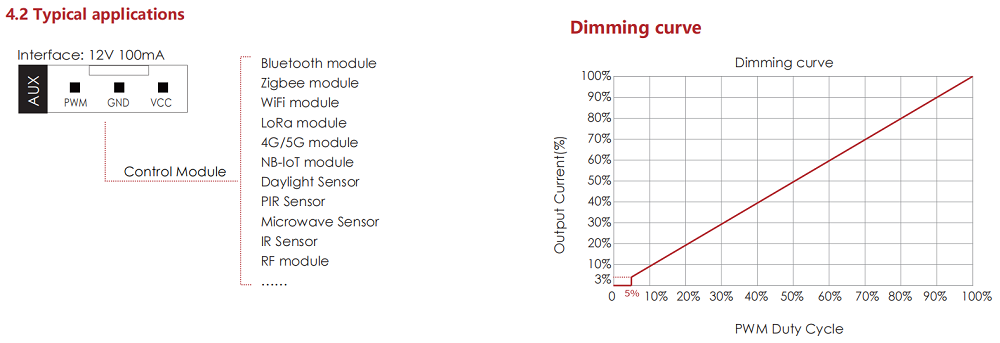

K24 power supply is equipped with a PWM + AUX 12V interface is a multi-functional expansion.  It is a reserved and highly flexible expansion interface, especially designed to enhance the Smart control and environmental perception capabilities of the device. The core of this interface has outstanding compatibility and scalability, which connect seamlessly with different mainstream control and sensing modules.

Customers can freely select and connect based on their actual application scenarios and requirements, including Bluetooth module, Zigbee module, WiFi module, LoRa module, 4G/5G, Various wireless communication modules, including module/4G/5G module and NB-IoT module (Narrowband Internet of Things module). It can realize remote monitoring, data reporting, and cloud management of devices, meeting diverse communication requirements ranging from short-range local control to wide-area low-power

Internet of Things connections.

Meanwhile, the AUX interface also perfectly supports various environmental perception and triggering modules.  Such as Daylight Sensor (Daylight Sensor), PIR Sensor (human body infrared Sensor), Microwave Sensor (microwave sensor), IR Sensor (infrared sensor), RF module (radio frequency module), etc. This enables the K24 power supply to intelligently sense changes in light, movement of people or objects, and receive specific remote control instructions. Providing a solid foundation for achieving automated control based on environmental conditions (such as smart lighting, security linkage, and energy-saving strategies) or customized user interaction.

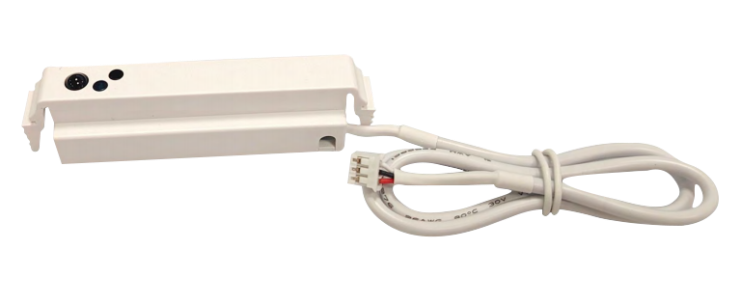

Compact Size Daylight Harvest Microwave Motion Sensor

The compact size daylight harvest microwave motion sensor adopts an innovative linear configuration antenna (with a width of only 1mm), perfectly adapting to various embedded linear lamps.  The ultra-thin design enables seamless concealed installation, balancing aesthetics and functionality.  Its core is equipped with a triple intelligent dimming system:

Daylight Harvesting - Automatically senses the intensity of ambient light and dynamically adjusts the brightness of lamps to optimize energy consumption;

Three-level Dimming control (Tri-level Dimming) - Provides multi-level brightness scene switching to meet diverse lighting requirements;

Dual photosensitive probe technology (DUAL-PD) - Accurately identify the changes of day and night light through dual sensors to achieve the automatic morning start/evening close (Lux On/Off) function.

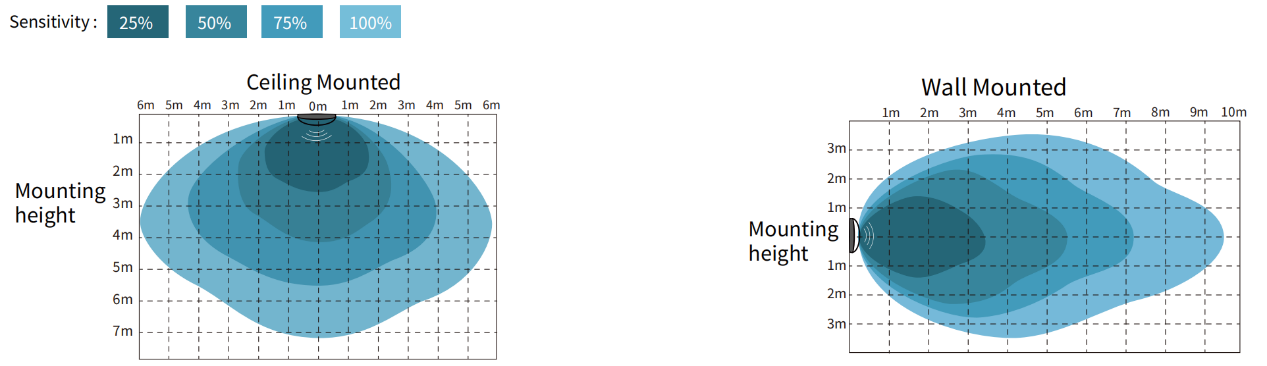

Detection coverage:

Auto Lux on and Auto Lux off Function

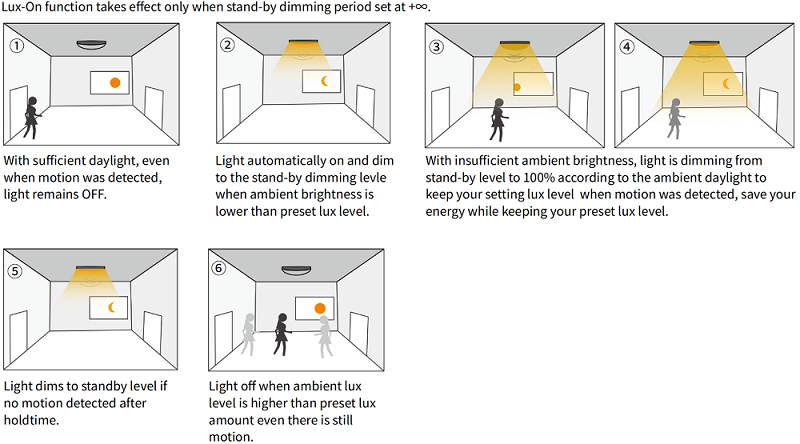

Thanks to the dual-PD technology, the MC004-S02R sensor can tell the difference between natural light and artificial LED light. The sensor will turn on your light fixtures when the ambient light is lower than the setting value, even there is no motion is detected. When the ambient light is up to the setting value, the sensor will switch off the light fixtures even if there is still motion.

Note: Lux-on sampling time--10s; Lux-off sampling time--10s;

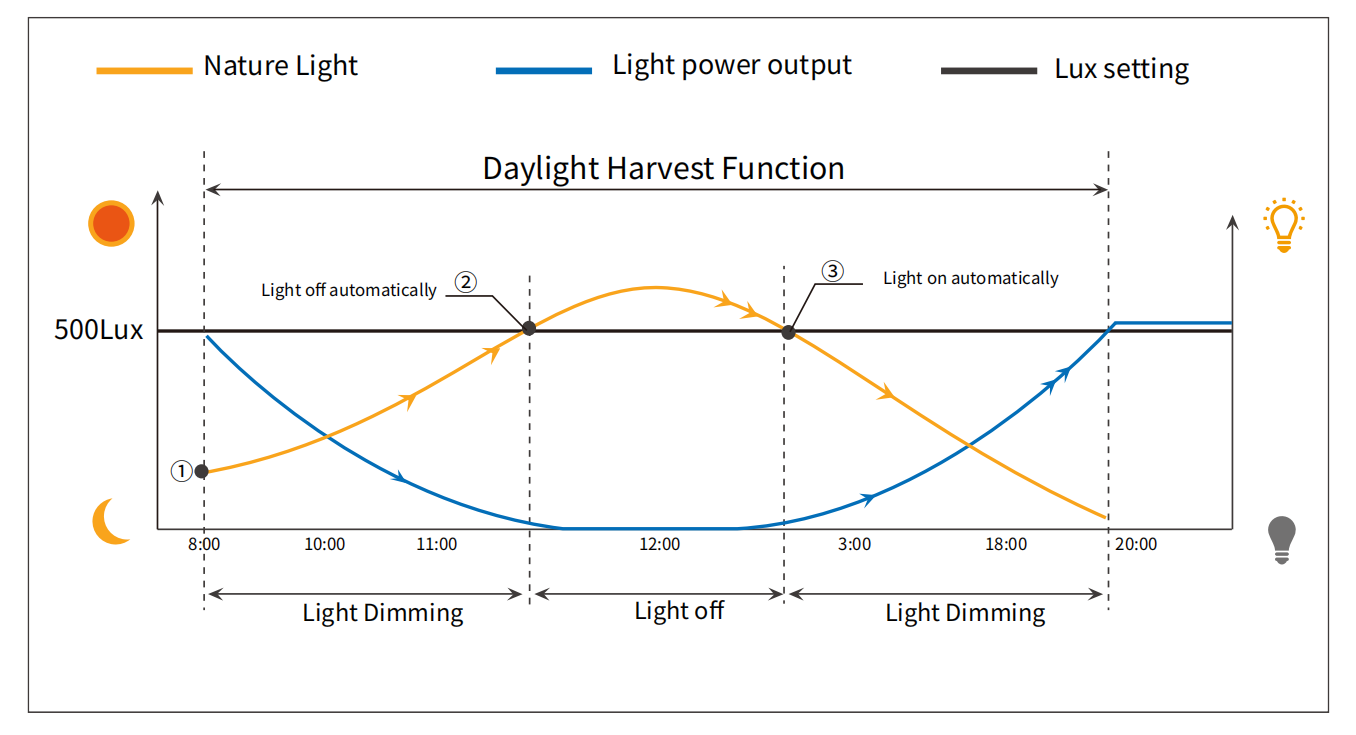

Daylight Harvest Function

MC004-S02R was built in the dual-photo mode. Sensor technology to distinguish the natural light and the artificial LED light, so the sensor will dynamically dim your light fixture according to the ambient sunlight. When motion is detected, when the sunlight is turning up, the light fixture dims down. When the Sunlight is turning down, the light fixture is turned up. This mechanism to balance the natural light and the artificial light saves your energy, but keeps the necessary lux level.

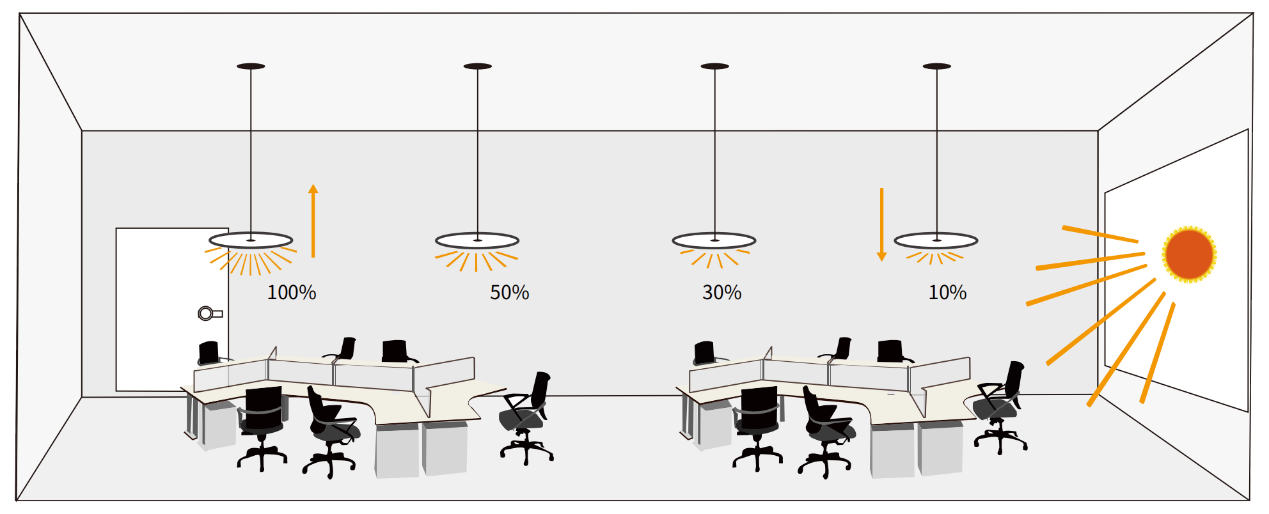

Typical application

When the sensor detect the nature light, it will dimming the light, the light fixture is dimming output as below:

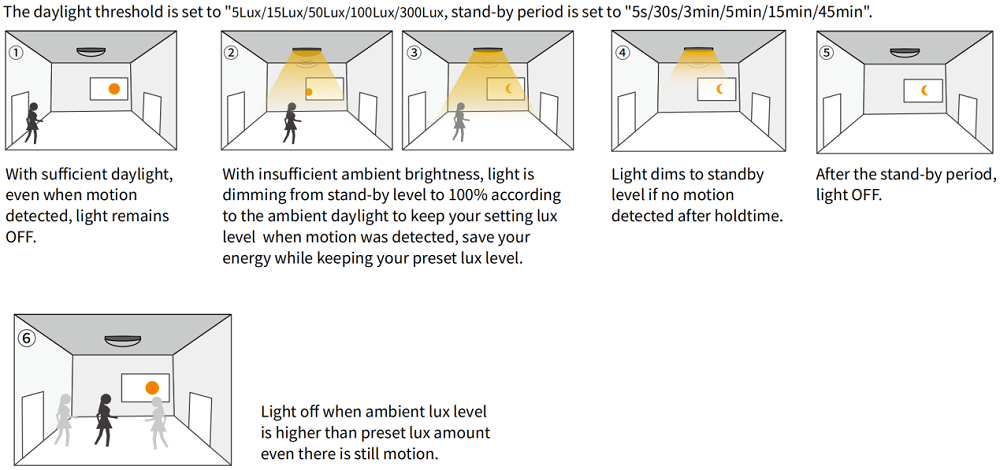

Application

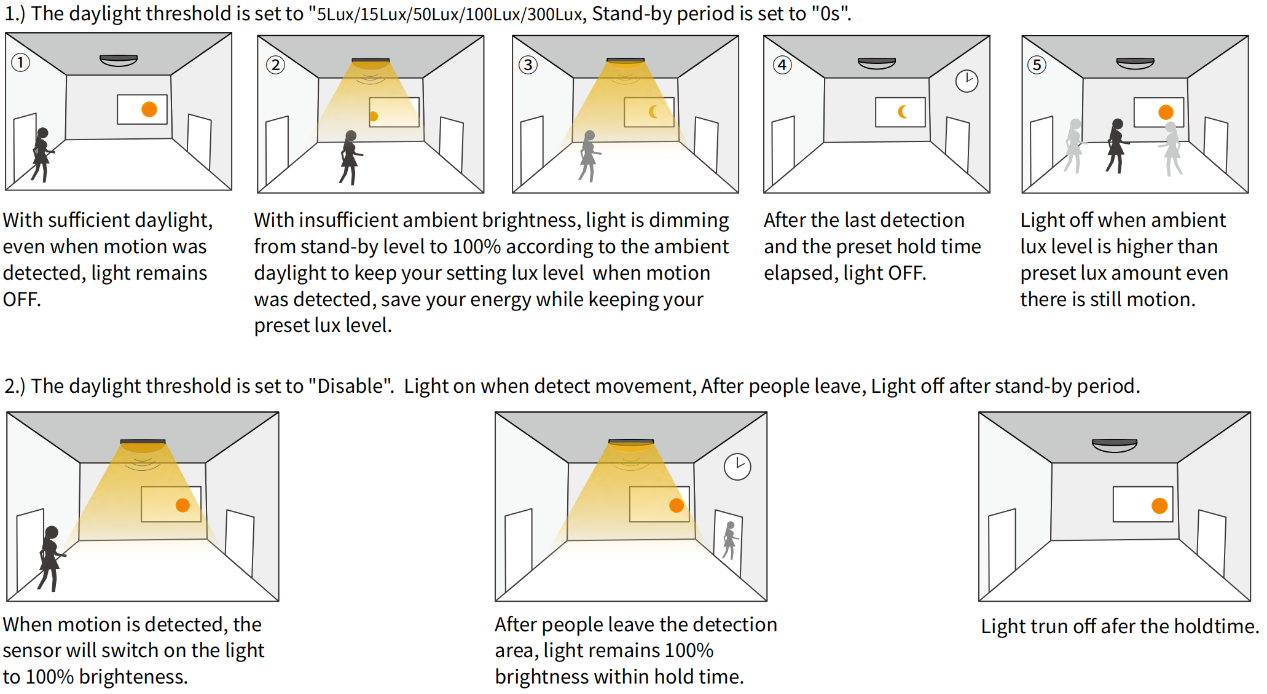

1. Motion detection + Daylight Harvest + Lux on/off Function

2.Auto Lux on/off function + Daylight Harvest Function

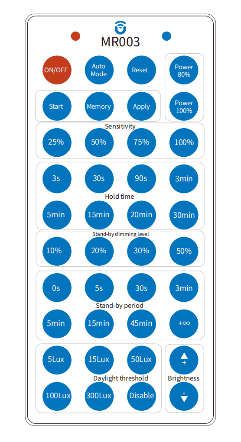

MR003 Programmable one key commission remote controller

Practical case

Fanxstar Emergency Batman Batten Light B2

The Batman Batten light B2 is designed for environments with strict safety regulations, equipped with a universal K24 2-in-1 emergency power supply and intelligent D8SE control module.  Our lighting complies with the AS/NZ 2293.1-4.3 Standard, which can reach D63/D80 performance. With high-performance to ensure reliable lighting in emergencies.  Our lighting supports various building scenarios such as large parking lots, medical warehousing centers, and education and public facilities
