Cold Version -40°C IP66 Emergency LED Tri Proofs

Fanxstar Technology Co., LTD established in 2016, stands proudly as a China National High-Tech enterprise, specializing in the production and innovation of LED Tri proof lighting products. Our product Trilamp A3 is the leading low-temperature and IP66 LED waterproof batten. Today, with a strong commitment to safety and reliability, we have built a reputation for excellence in the field of emergency LED Tri proof lighting solutions. We understand the critical role that special LED Tri proof lighting plays in ensuring the safety and security of individuals in various environments, and we are steadfast in our mission to deliver innovative, dependable, and efficient products.

Send Inquiry

Product Description

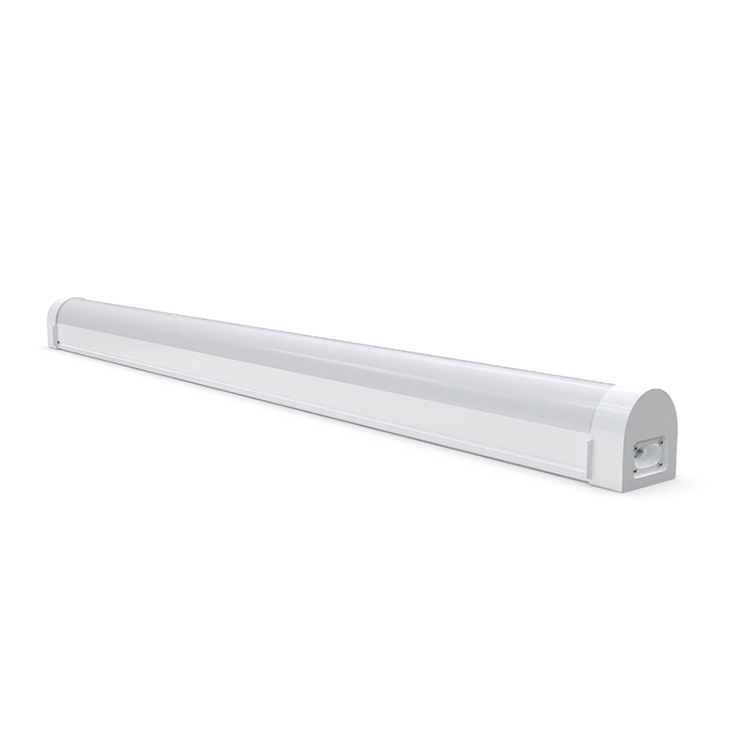

FANXSTAR Leading Low-temperature And IP66 LED Waterproof Batten Trilamp A3

FANXSTAR Leading Low-temperature LED Tri proof light Trilamp A3 LED Batten is specially designed for cool room and freezer applications where temperatures can plummet to as low as -40C, ensuring reliable performance in various conditions.High protection: LED Tri proof light A3 have durable polycarbonate enclosures and boast IP66 ratings, ensuring robust protection against environmental elements. Extra high efficiency output: With an impressive efficiency output of 170lm/w, it provides superior

illumination while conserving energy. Lightning surge: L-N: 2KV L/N-FG: 4KV (IEC61000-4-5 standard), make less prone to damage in harsh environments. Integrated Emergency Option (-40°C): Low-temperture battery technology, engineered for temperatures as low as -40°C, this option ensures LED Tri proof luminaires reliable illumination in challenging cold environments.Elevate your lighting solution to withstand extreme temperatures with the LED Tri proof luminaires Trilamp A3 LED Batten from our Low Temperature Emergency Lighting Range. Trust in its robustness, efficiency, and adaptability for your unique lighting needs.

FANXSTAR LED Tri proof luminaires leading low-temperature Trilamp A3 Specification

Item	Part Number	A3-2FT14-MMK-X	A3-4FT28-MMK-X	A3-5FT36-MMK-X
	Description	Leading low-temperature LED weatherproof Batten Light
Working	Mode of Operation	Multimode - Maintained / Non-Maintained
Input	Voltage&Frequency	220-240Vac, 50/60Hz
	Installation	Large terminal blocks, 20mm² cable entry
Output	Light Source	High lumens SMD2835
	Color Temperature	MM=27-65 stands for 2700-6500K
	Luminous Flux	170lm/w±10%
	Power Consumption	14W	18W	36W
Controls	Protection	Overcharge, low voltage disconnect, overcurrent, short circuit
	Multimode	Standy, Dimming, Microwave Sensor, Emergency
Emergency	Charger	16hr intelligent 3-stage charger with battery management system
	Emergency Power	2W (Non-Maintained)
	Duration Time	> 90 minutes
	Testing Facility	Manual test, Self test, DALI2.0
	Indicators	Battery charger green LED, Function failure through red LED.
Physical	Construction	Diffuser - high transmission opal polycarbonate
	Mounting	Surface mounted - ceiling / wall
	Colour	White, gray, black tri-colors as options
	Dimensions L x W x H(mm)	600x68x68	1200x68x68	1500x68x68
	IP/IK Rating	IP66 & IK05
	Weight	0.65kg	1.05kg	1.45kg
	Warranty	3 years on product, 3 years on battery
Environment	Operating Temperature	-40° to 50°C
	Relative Humidity	-20 to 95%
Compliance	Standards	CE/UKCA/RCM, EN1838, IEC60598.1, AS/NZS 2293
	AS/NZS 2293 Classification	C0 D80, C90 D50
Accessories	Microwave Dimming Sensor	P/N: A3S: FS010ER
	Replacement Battery	P/N: A3E: LiFePO4 6.4V 2200mA
