High Lumens LED Tri-Proof Luminaire

Remarkable Fanxstar Technology Co., LTD, proudly established in the esteemed year of 2016, holds a prominent position as a leading China National High-Tech enterprise, solely dedicated to the production and groundbreaking development of LED Tri-proof lighting products. Our exceptional Trilamp A3 product stands out as Industry Star High Lumens Output 185lm/W IP66&IK08 LED Waterproof Seamless Splice Batten. With a steadfast commitment to unparalleled safety and reliability, we have garnered an illustrious reputation for excellence in providing emergency LED Tri-proof lighting solutions. We deeply comprehend the crucial and vital role that specialized LED Tri-proof lighting plays in safeguarding the safety and security of individuals across diverse environments. It is our sacred mission to deliver innovative, trustworthy, and efficient products with unwavering determination.

Send Inquiry

Product Description

FANXSTAR Industry Star High Lumens Output 185lm/W IP66&IK08 LED Waterproof Seamless Splice Batten Trilamp A3

The Led weatherproof light A3 family is a highly popular and best-selling product within fanxstar's triproof product line, with a sales volume exceeding 300,000 pieces. This series features IP66, IK08, and waterproof seamless splicing, which can reduce the wiring on the construction site and facilitate the rapid installation of the project.

The Pro=165LPW and Max=185LPW versions are the pinnacle and best-selling models of the LED Tri proof lamp Trilamp A3 Normal Lighting series. All the material selections in this collection are of the highest grade.

Light source: the top SMD2835 high light efficiency reaching up to 265lm/w. LED Driver: Flicker-free<1%, THD<10%, Lightning surge up to 4KV, ENEC approved. Housing part: components with low-temperature cold resistance and UV resistance

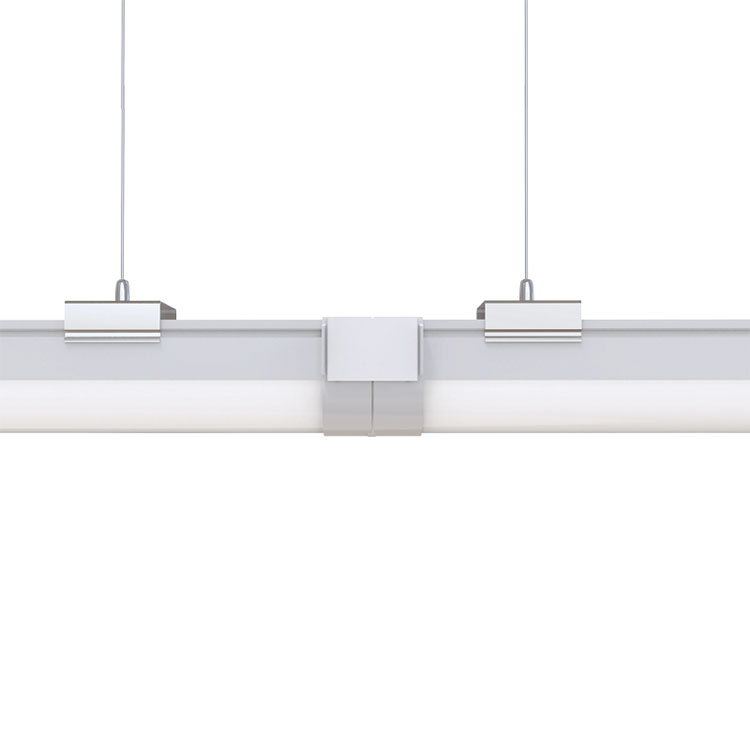

With the professional design of Fanxstar engineers, and auxiliary installation accessories such as input lines, connecting lines, seamless connectors, hanging ropes, and unlimited extenders, Led Tir-proof luminaire A3N (either Pro or Max.) can meet the indoor and outdoor high protection lighting applications.

LED Tri Proof luminaires Ordering Guide

FANXSTAR LED Tri proof luminaires Trilamp A3 Specification

LED Tri Proof luminaires Specifications data with 600mm length

	Version	Item No.	Description	MM=Color temp.	Luminous flux
□	Por	A3-2FT18-MMK-P	2' LED Weatherproof Batten light, Voltage200-240V 50/60Hz, Power 18W, 80CRI, 27-65K Flicker-free	2700-6500K	160 lm/W
□	Max	A3-2FT10-MMK-M	2' LED Weatherproof Batten light, Voltage200-240V 50/60Hz, Power 10W, 80CRI, 27-65K Flicker-free	2700-6500K	185 lm/W

LED Tri Proof luminaires Specifications data with 1200mm length

	Version	Item No.	Description	MM=Color temp.	Luminous flux
□	Por	A3-4FT36-MMK-P	4' LED Weatherproof Batten light, Voltage200-240V 50/60Hz, Power 36W, 80CRI, 27-65K Flicker-free	2700-6500K	160 lm/W
□	Max	A3-4FT20-MMK-M	4' LED Weatherproof Batten light, Voltage200-240V 50/60Hz, Power 20W, 80CRI, 27-65K Flicker-free	2700-6500K	185 lm/W

LED Tri Proof luminaires Specifications data with 1500mm length

	Version	Item No.	Description	MM=Color temp.	Luminous flux
□	Por	A3-5FT54-MMK-P	5' LED Weatherproof Batten light, Voltage200-240V 50/60Hz, Power 54W, 80CRI, 27-65K Flicker-free	2700-6500K	160 lm/W
□	Max	A3-5FT40-MMK-M	5' LED Weatherproof Batten light, Voltage200-240V 50/60Hz, Power 40W, 80CRI, 27-65K Flicker-free	2700-6500K	185 lm/W
