DALI Dimming Triproof LED Luminaire
  • DALI Dimming Triproof LED LuminaireDALI Dimming Triproof LED Luminaire
  • DALI Dimming Triproof LED LuminaireDALI Dimming Triproof LED Luminaire
  • DALI Dimming Triproof LED LuminaireDALI Dimming Triproof LED Luminaire
  • DALI Dimming Triproof LED LuminaireDALI Dimming Triproof LED Luminaire
  • DALI Dimming Triproof LED LuminaireDALI Dimming Triproof LED Luminaire
  • DALI Dimming Triproof LED LuminaireDALI Dimming Triproof LED Luminaire
  • DALI Dimming Triproof LED LuminaireDALI Dimming Triproof LED Luminaire

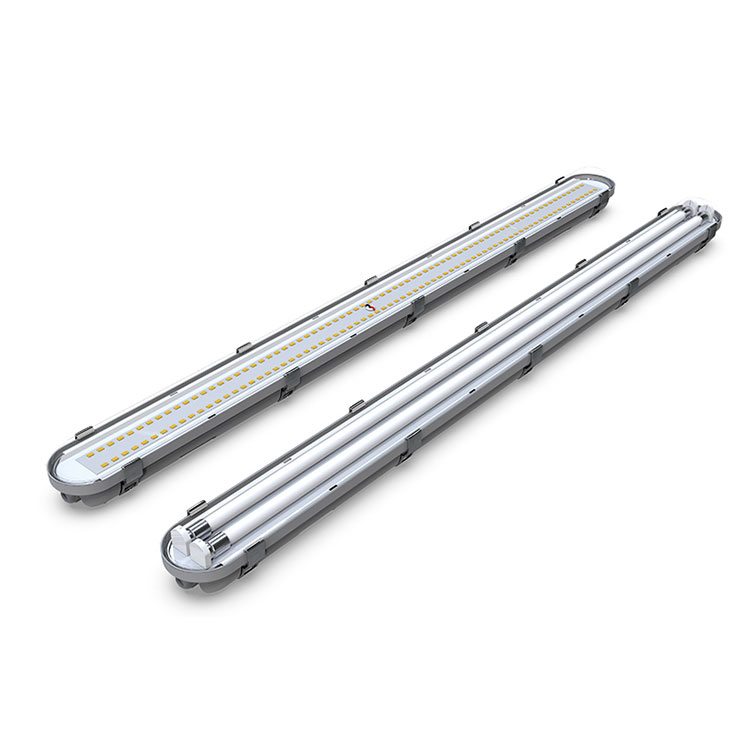

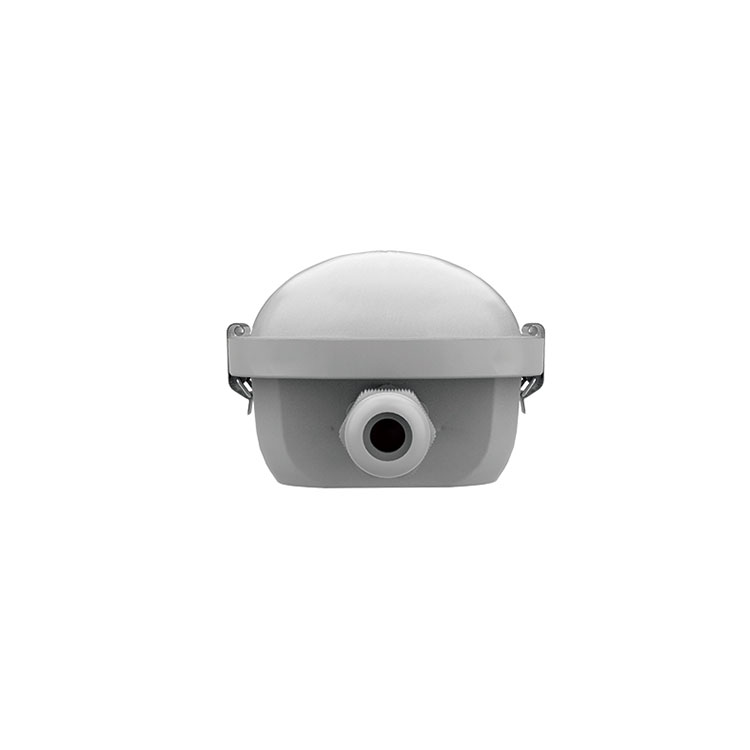

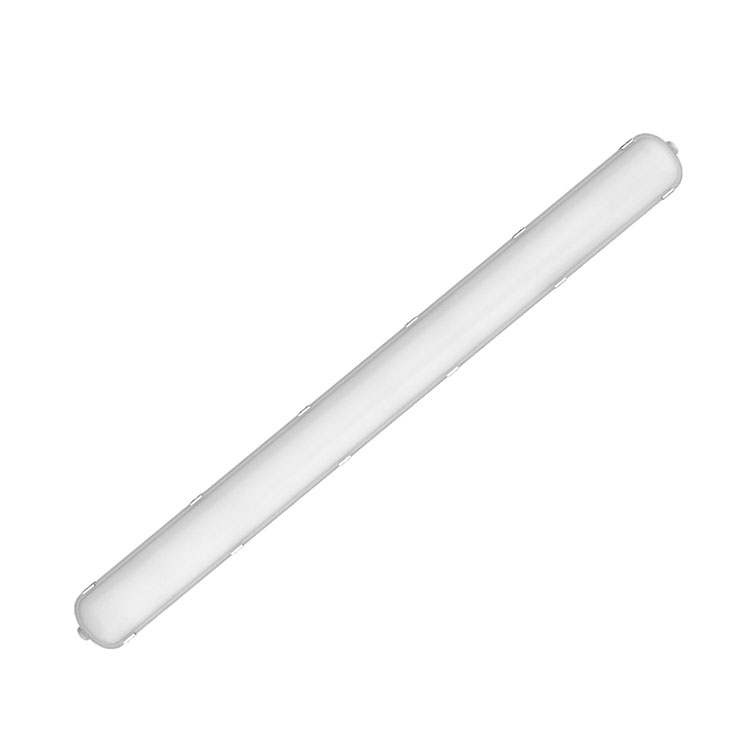

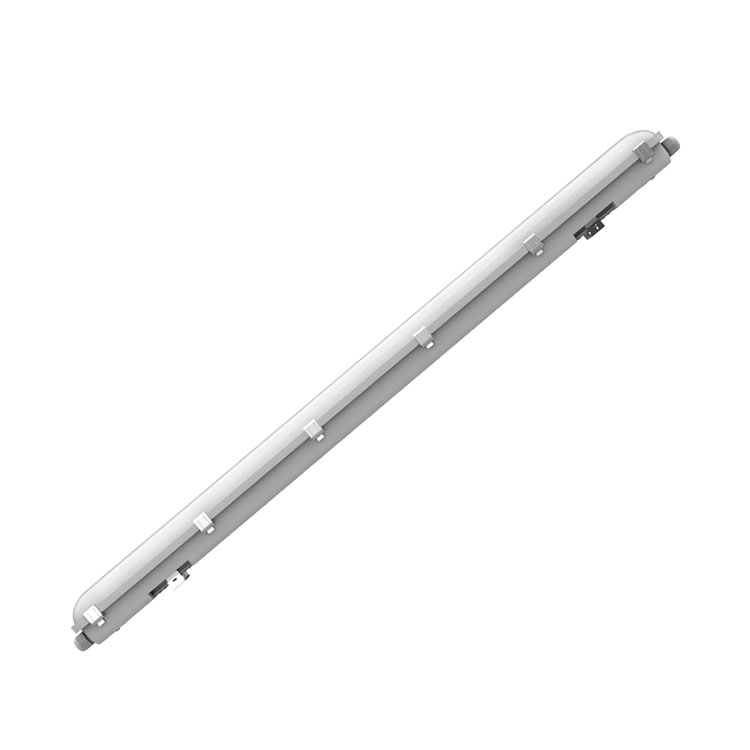

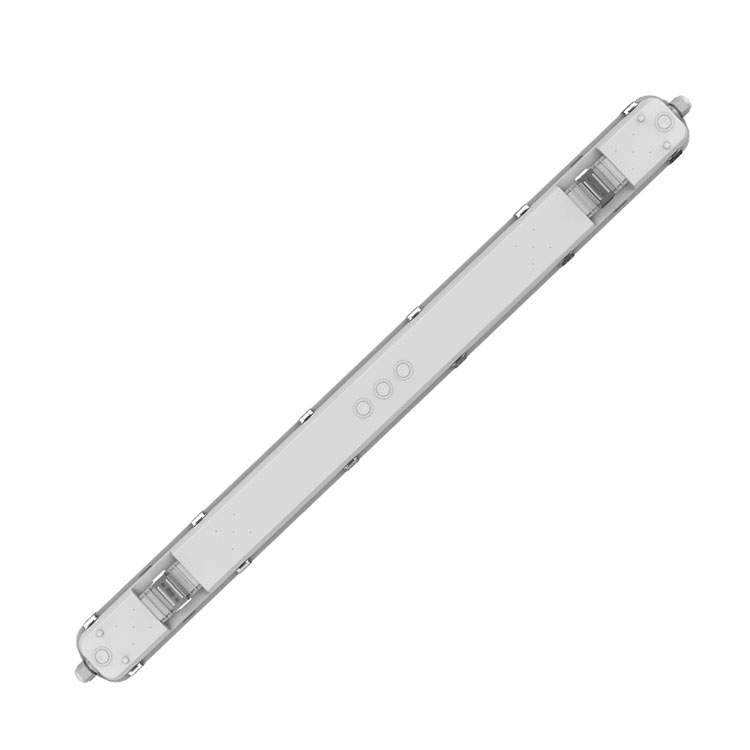

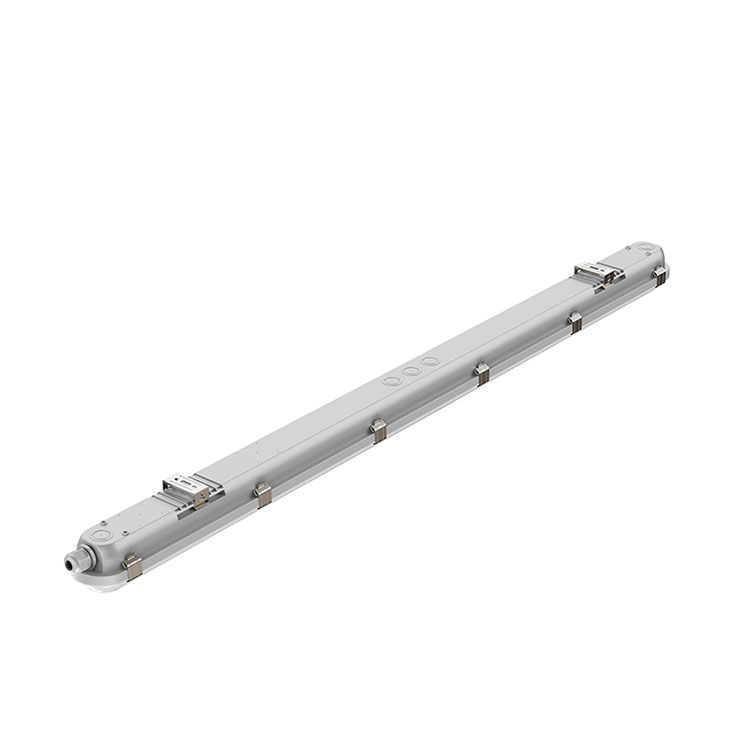

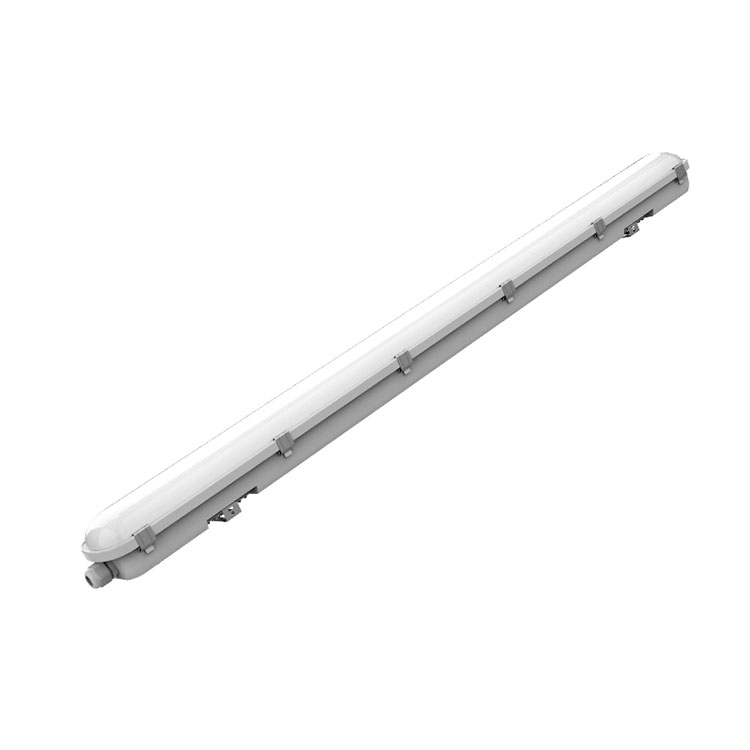

DALI Dimming Triproof LED Luminaire

FANXSTAR is a leading supplier of China's LED Tri-proof lighting Trilamp A11. This remarkable product, the LED Tri-proof lighting Trilamp A11, is not only extremely durable but also highly energy-efficient, offering a superior lighting solution. It not only enhances safety in various settings but also significantly improves productivity, while simultaneously reducing costs and enhancing sustainability. At FANXSTAR, we firmly adhere to independent R&D and intellectual property management. Our state-of-the-art R&D and testing equipment enable us to deliver top-quality products. We take pride in having a mature and stable LED Tri-proof luminaires product development system, which has allowed us to amass more than 30 patents in the LED field. This system ensures that our lighting solutions meet the highest standards of quality and performance, providing our customers with reliable and efficient lighting options that truly make a difference. With our commitment to innovation and excellence, we continue to drive the industry forward, offering cutting-edge lighting solutions that benefit both our customers and the environment.

Send Inquiry

Product Description

FANXSTAR DT6/DT8/D4i DALI Dimming Waterproof Light Trilamp A11 DA
DALI2.0 Emergency Converter as Opitons

The LED Tri Proof light A11-DA series integrates all the experience and wisdom of fanxsatr engineers, integrates all the current resources of the company, and is the culmination of the Trilamp family.

Structurally, the LED Tri-proof lighting fixtures use advanced "hot flow channels" technology for seamless diffuser masks and up to 94% efficiency.

In terms of function, led tir-proof luminaire A11 DA has both the high protection IP66&IK10 of the A9 series and the professional dimming performance of the A4-DA series. In addition, it also has the optional function of high-power DALI emergency, which is the only option on the market so far.

A11-DA series all reserved power supply and dimming main line, support double-end splicing function, provide more powerful scalability, is the high-end benchmark of led waterproof lamps.



FANXSTAR LED Tri proof luminaires Trilamp A11 Specification

Item Part Number A11-2FT20-MMK-DA A11-4FT40-MMK-DA A11-5FT60-MMK-DA
Description IP66&IK10 DALI Dimming Waterproof Batten
Working Mode of Operation DALI2.0, 0.01-100% Dimming
Input Voltage&Frequency 220-240Vac, 50/60Hz
Wiring Connection 923 terminal blocks, Loop in and Loop out
Output Light Source High lumens SMD2835
Color Temperature MM=27-65 stands for 2700-6500K
Luminous Flux 140lm/w±10%
Power Consumption 20W 40W 60W
Controls Protection Overcharge, low voltage disconnect, overcurrent, short circuit
Multimode DALI2.0 Sensor, Brightness Control, 0-10V Dimmable as options
Emergency Charger 16hr intelligent 3-stage charger with battery management system
Emergency Power 15W 20W 30W
Duration Time 3 hours 3 hours 90 Minutes
Testing Facility Manual test, Self test
Indicators Battery charger green LED, Function failure through red LED
Physical Construction Diffuser - high transmission opal polycarbonate, chassis - polycarbonate
Mounting Surface mounted - ceiling/wall/suspend
Colour Gray RAL7035
Dimensions L x W x H(mm) 600x110x82 1200x110x82 1500x110x82
IP/IK Rating IP66 & IK10
Weight 1.2kg 2.2kg 2.7kg
Warranty 5 years on product,3 years on battery
Environment Operating Temperature -20° to 50°C
Relative Humidity -10 to 95%
Compliance Standards CE/UKCA/RCM
Accessories Dimmable Sensor P/N: A11-DAS: DA9033A
Remote Control Non


FANXSTAR LED Tri-proof fixtures Trilamp A11 Feature And Application

1:1 replacement for fluorescent 2-lamps

Extra High Output Lumens 140Lm/w

Matched intelligent sensor also available while project requires

Leading high-power DALI emergency solutions:15W 3HRS/20W 2HRS/30W 90Mins

Best partner of temporary lighting

Splicing and assembling of double end wiring


LED Tri proof lights Trilamp A11 Wire Diagram


FANXSTAR LED Tri proofs luminaires Trilamp A11 Details

LED Tri proof light 1:1 replacement for fluorescent 2-lamps.
Typically replaces:• 2 x 58W T8 fluorescent | • 2 x 35W T5 fluorescent


Unique patent design "E-3CCT": dual-way 4000K of LED Tri proof light


The LED Tri proof lights includes 0-10V/DALI dimming for Options And AC/DC 24-48V Low Voltage Input


Splicing and assembling of double end wiring of LED Tri-proof fixture


LED Tri proof light Trilamp A11 Dimensions


LED Tri proof light Trilamp A11 Packing


LED Tri-proof light Installation

Surface mounted and suspend mounted available
