High Power 60W LED Shop Down Light
  • High Power 60W LED Shop Down LightHigh Power 60W LED Shop Down Light
  • High Power 60W LED Shop Down LightHigh Power 60W LED Shop Down Light
  • High Power 60W LED Shop Down LightHigh Power 60W LED Shop Down Light
  • High Power 60W LED Shop Down LightHigh Power 60W LED Shop Down Light
  • High Power 60W LED Shop Down LightHigh Power 60W LED Shop Down Light

High Power 60W LED Shop Down Light

Fanxstar stands as a leading manufacturer and supplier of LED downlights High Power 60W LED Shop Down Light in China. The Allstar D1 represents our commitment—a high-quality IP65 waterproof High output LED down lighting solution.
For the past 7 years, we've been dedicated to providing clients with top-tier LED downlight luminaires at competitive prices. Our business spans globally, reaching over 90 countries and regions through our robust export network. Our ongoing endeavor involves proactive collaboration with partners and customers to continuously enhance and innovate more adaptable, customized, and user-friendly LED downlight fixtures, fostering a mutually beneficial business model.

Send Inquiry

Product Description
High Power 60W LED Shop Down Light

FANXSTAR IP65 weatherproof LED downlight for better lm/$

Perfect product for high ceiling heights spaces Allstrar D1

[Allstar DX] 10-40W LED shop downlight is powered by Lumileds Middle Power LED 2835R Series, designed for better lm/$. The Lumileds-2835R integrated LED chip provides a brightness of 4800lm@40W equivalent to a classic light spot of 300W, providing an actual efficiency of 120lm/W and a beam of 120℃. Its service life is 74,000 hours, 25 times that of traditional spot, saving 80 percent.

[Allstar DX] The LED shop downlight combined a beautiful circular design with outstanding features to deliver superior energy efficiency and brightness results. Benefiting from higher protection (IP65 max.) and power (50W max.),

[Allstar DX] The LED shop down light is an ideal product for special applications such as lobby with high ceiling heights, where daily activities can take place for more than 16 hours.

[Allstar DX] LED down lamp is made from high-quality aluminum and is equipped with an opal diffuser to provide even lighting without annoying reflections. It also has CE/SAA and RoHS certification, which is synonymous with quality and safety.


LED Shop Down Light Allstar D1 Ordering Guide

Weatherproof luminaires | Allstar D1

Type of Protection: IP 20/42

Protection Class: II

Impact Protection: IK10

80CRI Standard And 90CRI Optional

Made by Phillips/Osram/AGT ENEC/TUV Driver

Specifications using 5000K and subject to change. All parameters +/- 5%


FANXSTAR LED Down Light Allstar D1 High Power 60W LED Shop Down Light Specification

Version Item No. Description MM=Color temp. Luminous flux
Std. D1-4SZZ-MMK-N 4' IP20/42 LED Shop downlight, Voltage200-240V 50/60Hz,
Power 8-15W, 80CRI, 20-65K
LED Qty 60pcs
2700K
4000K
5000K
5700K
105 lm
~
120 lm
SENSOR D1-4SZZ-MMK-S 4' IP20/42 LED Shop downlight, Voltage200-240V 50/60Hz,
Power 8-15W, 80CRI, 20-65K
5.8G Microwave Motion Sensor, Fanxstar MT025-X 2 in 1
2700K
4000K
5000K
5700K
105 lm
~
120 lm
EMG D1-4SZZ-MMK-E 4' IP20/42 LED Shop downlight, Voltage200-240V 50/60Hz,
Power 8-15W, 80CRI, 20-65K Emergency Kits 2/3HRS LiFePO4 AS/NZS 2293.3 compliant
2700K
4000K
5000K
5700K
105 lm
~
120 lm


LED Down Light Specifications data with D1-6'/7' inch cut-out φ170-200mm

Version Item No. Description MM=Color temp. Luminous flux
Std. D1-6SZZ-MMK-N 6' IP20/42 LED Shop downlight,
Voltage200-240V 50/60Hz,
Power 12-24W, 80CRI, 20-65K
LED Qty 96pcs
2700K
4000K
5000K
5700K
105 lm
~
120 lm
SENSOR D1-6SZZ-MMK-S 6' IP20/42 LED Shop downlight,
Voltage200-240V 50/60Hz,
Power 12-24W, 80CRI, 20-65K
5.8G Microwave Motion Sensor,
Fanxstar MT025-X 2 in 1
2700K
4000K
5000K
5700K
105 lm
~
120 lm
EMG D1-6SZZ-MMK-E 6' IP20/42 LED Shop downlight,
Voltage200-240V 50/60Hz,
Power 12-24W, 80CRI, 20-65K
Emergency Kits 2/3HRS LiFePO4
AS/NZS 2293.3 compliant
2700K
4000K
5000K
5700K
105 lm
~
120 lm


LED Down Lights Specifications data with D1-8'/9'inch cut-out φ210-240mm

Version Item No. Description MM=Color temp. Luminous flux
Std. D1-8SZZ-MMK-N 8' IP20/42 LED Shop downlight, Voltage200-240V 50/60Hz,
Power 18-30W, 80CRI, 20-65K
LED Qty 120pcs
2700K
4000K
5000K
5700K
105 lm
~
120 lm
SENSOR D1-8SZZ-MMK-S 8' IP20/42 LED Shop downlight, Voltage200-240V 50/60Hz,
Power 12-24W, 80CRI, 20-65K 5.8G Microwave Motion Sensor, Fanxstar MT025-X 2 in 1
2700K
4000K
5000K
5700K
105 lm
~
120 lm
EMG D1-8SZZ-MMK-E 8' IP20/42 LED Shop downlight, Voltage200-240V 50/60Hz,
Power 18-30W, 80CRI, 20-65K Emergency Kits 2/3HRS LiFePO4 AS/NZS 2293.3 compliant
2700K
4000K
5000K
5700K
105 lm
~
120 lm


FANXSTAR LED Down Lighting Allstar D1 High Power 60W LED Shop Down Light Feature And Application

Flicker-free, Compliant to Directive 2009/125/EC

Architectural style downlight: 4/5/6/7/8/9 Inch

Multiple power variations: 12W/18W/24W/30W

Protective led shop downlight: IP20/IP42/IP54/IP65

Flexible range a clipping from Ø120mm to 240mm

Five years warranty (subject to terms and conditions)

Low-Voltage Downlights For Centralized Control

High-Power 10-60W LED Shop Downlights

Application:

Residential, Hotels, Shops, Hospitals, Conference rooms, Reception areas


FANXSTAR LED Down Lights Allstar D1 High Power 60W LED Shop Down Light Details

Flicker-free, Compliant to Directive 2009/125/EC of LED shop light

LED down lighting fixtures Architectural style downlight: 4/5/6/7/8/9 Inch, Multiple power variations: 12W/18W/24W/30W

Protective led shop downlight: IP20/IP42/IP54/IP65 of LED down light luminaire

Flexible range a clipping from Ø120mm to 240mm of LED down light

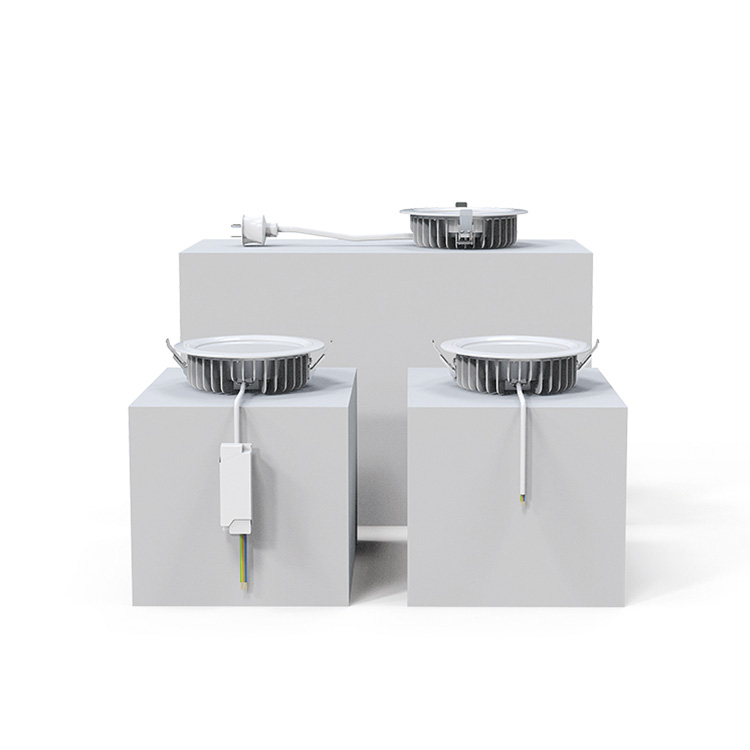

Allstar DX Family of LED Shop Down Light

Note that:

220-240Vac SAA version with 1.2 m flex and plug

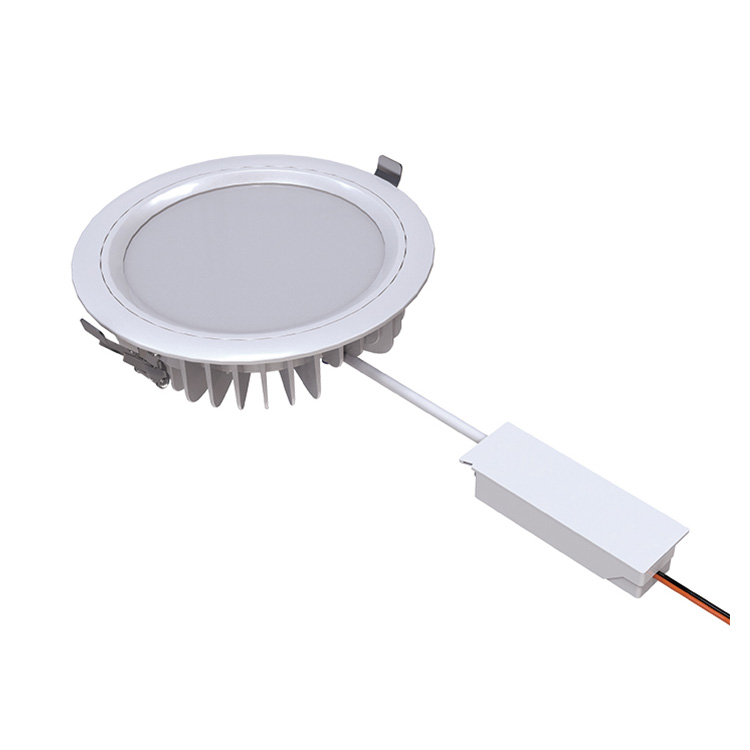

Build-in Driver operates at 220-240V AC, but External Driver supports 85-265V AC at 50-60hz frequency variations.



Allstar recessed LED down lights fitting

For circulation areas such as hallways and staircases


LED down light Allstar D1 Luminous Intensity Distribution Diagram


LED down light Allstar D1 High Power 60W LED Shop Down Light Installation
