Fanxstar stands as a leading manufacturer and supplier of LED downlights
For the past 7 years, we've been dedicated to providing clients with top-tier LED downlight luminaires at competitive prices. Our business spans globally, reaching over 90 countries and regions through our robust export network. Our ongoing endeavor involves proactive collaboration with partners and customers to continuously enhance and innovate more adaptable, customized, and user-friendly LED downlight fixtures, fostering a mutually beneficial business model.
Low-Voltage DOWNLIGHTS For Centralized Control

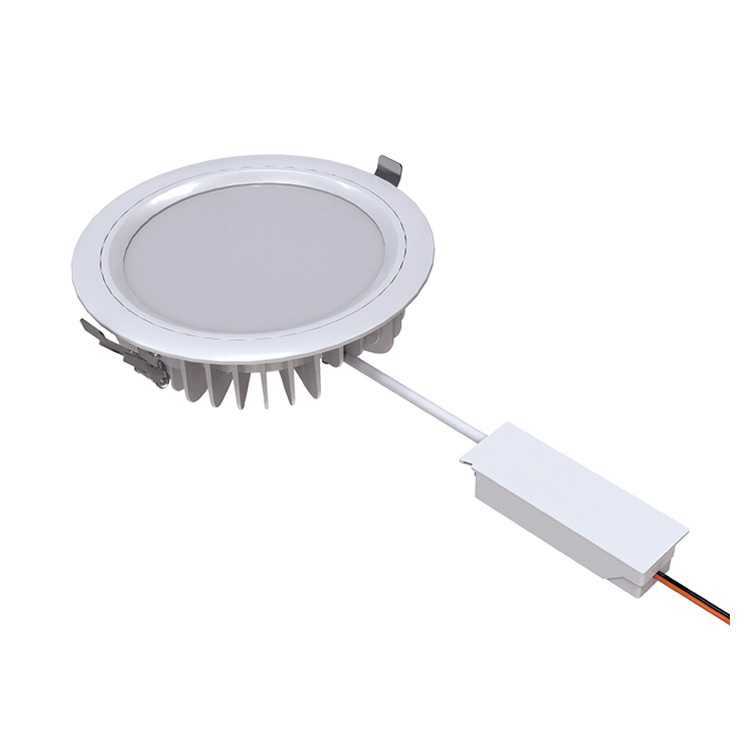

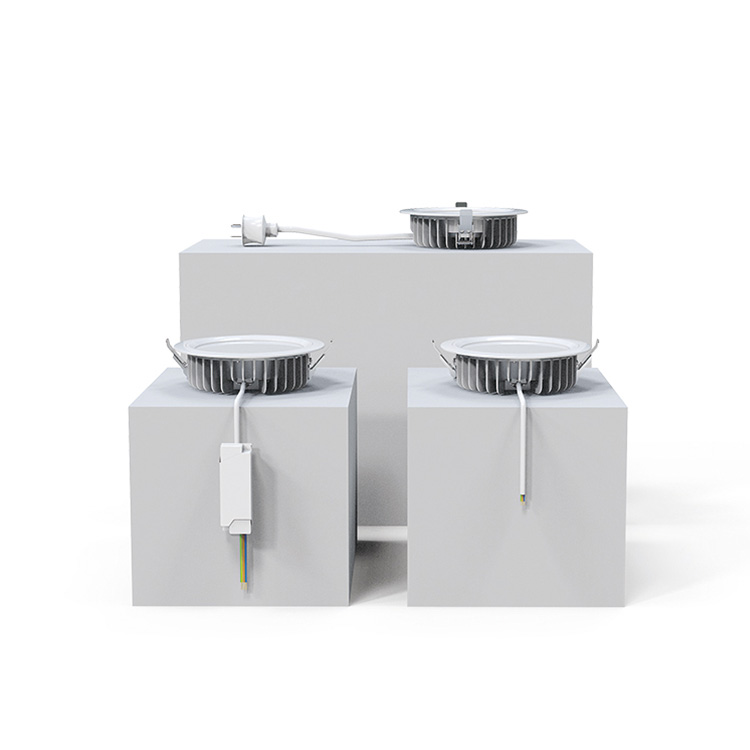

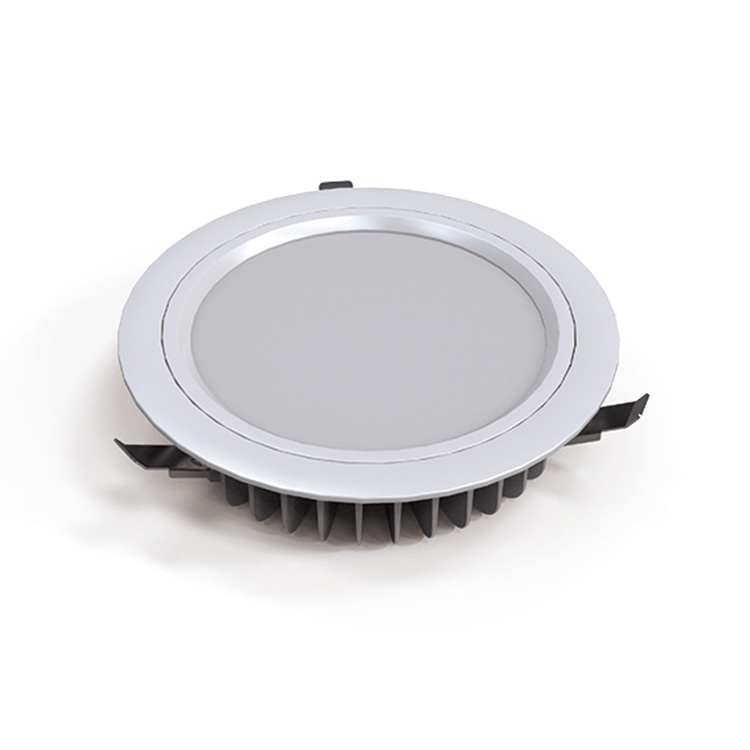

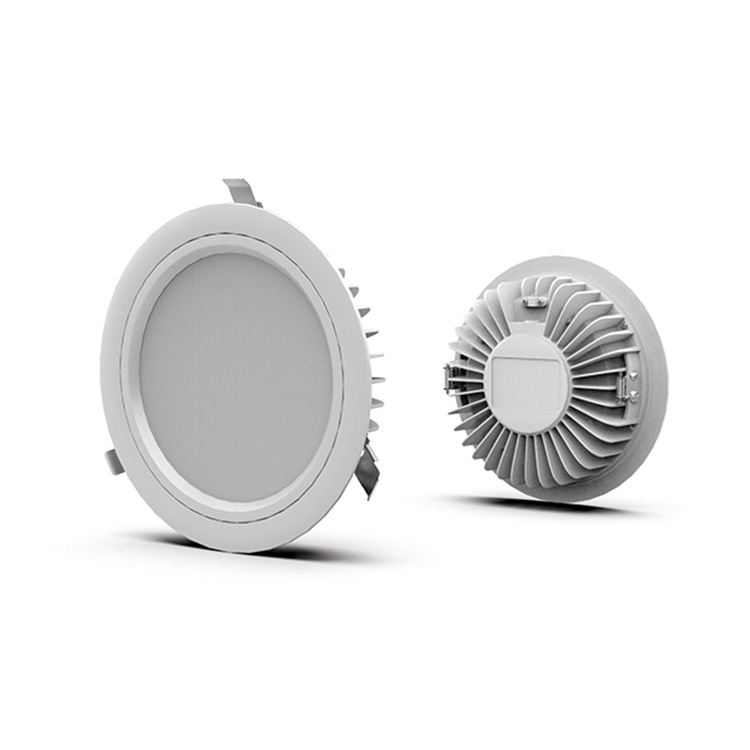

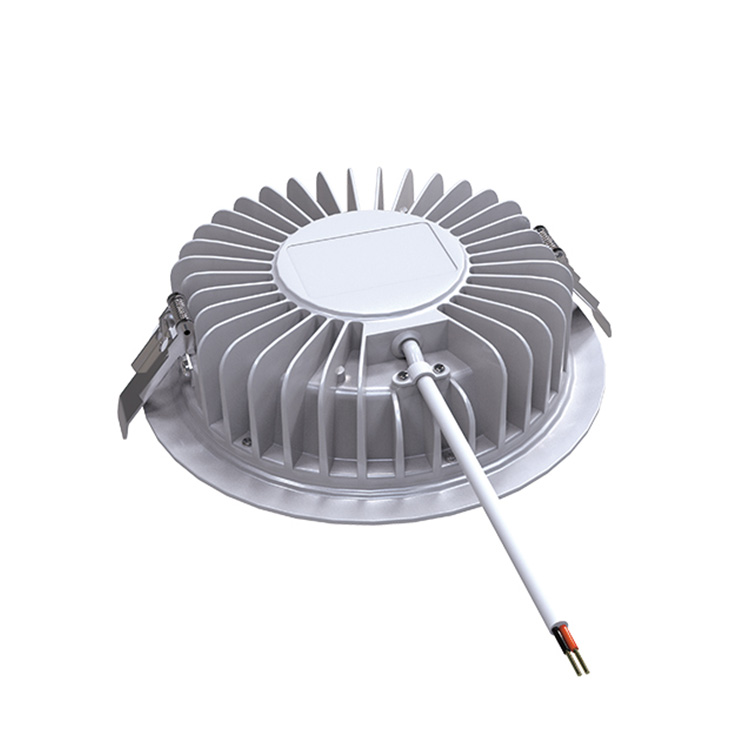

Allstar DX 10-60W LED shop downlights
have high protection levels, such as IP42/IP54/IP65, to provide better safety and protection performance. This type of LED down light is suitable for outdoor, humid areas or industrial places, with waterproof, dustproof, anti-corrosion and other characteristics, can work in harsh working environment for a long time without damage. In 6 "and 8" sizes, 60W high power and 7200lm lumen output can be achieved to illuminate the entire area, meeting the lighting needs of specific places in the lobby or outdoor corridor. Allstar DX LED down lights has two versions emergency: conventional application has 2/3/5W manual, automatic and Dali2.0, as well as the centralized control emergency system with the built-in DC24V/36V low voltage or built-in address controller application. The low voltage characteristics of Allstar DX LED down lights series can also be used in special and new energy fields such as explosion-proof and solar energy storage.
Item | Part Number | D1-4S15-MMK-E | D2-4S09-MMK-N | D3-4S18-MMK-N | 4-4S05-MMK-1 |
Description | IP65 Recessed All-in-one LED Downlight | ||||
Working | Mode of Operation | Multimode - Maintained / Non-Maintained | |||
Input | Voltage &Frequency | 220-240Vac|24Vac/dc, 50/60Hz | |||
Installation | Complete with 1.2m flex cable & plug for Australia | ||||
Output | Light Source | High lumens SMD2835 | |||
Luminous Flux | 120lm/w±10% | ||||
Power Consumption | 15W(Maintained) | 9W(Standy) | 18W(Standy) | 5W(Standy) | |
Controls | Protection | Overcharge, low voltage disconnect, overcurrent, short circuit | |||
Multimode | Low-voltage, Microwave Sensor and Emergency for optional | ||||
Emergency | Charger | 16hr intelligent 3-stage charger with battery management system | |||
Emergency Power | 2W (Non-Maintained) | ||||
Duration Time | > 180 minutes | ||||
Testing Facility | Manual test | ||||
Indicators | Battery charger green LED, Function failure through red LED. | ||||
Physical | Construction | UL94V0 Flame-retardant polycarbonate, chassis - Aluminium | |||
Mounting | Recessed - ceiling, 120 - 140mm cut-out | ||||
Colour | White | ||||
Dimensions L x W x H | Disc: 155mm diameter x Height: 53mm | ||||
IP Rating | IP65 | ||||
Weight | 640g | ||||
Warranty | 5 years on product, 3 years on battery | ||||
Environment | Operating Temperature | 0° to 50°C | |||
Relative Humidity | 0 to 95% | ||||
Compliance | Standards | CE/UKCA/RCM, EN1838, IEC60598.1, AS/NZS 2293 | |||
AS/NZS 2293 Classification | C0 D32, C90 D32 | ||||
Accessories | Replacement Battery | P/N: BAT-ONE: LiFePO4 3.2V 3200mA |
Note: Product specifications subject to change without prior notice due to ongoing product improvement policy and changes to industry standards.
Waterproof (IP54/65) LED Shop downlights
4-9 " full sizes die-cast architectural style downlight
Seven years warranty (subject to terms and conditions)
External IP65 Emergency Kits with 2/3/5W switchable (MT/ST/DALI)
Built-in DC24V/36V low-voltage supply or address controller application
Application:
Residential, Hotels, Shops, Hospitals, Conference rooms, Reception areas
Flicker-free, Compliant to Directive 2009/125/EC of LED shop lamp
LED down light fixture Architectural style downlight: 4/5/6/7/8/9 Inch, Multiple power variations: 12W/18W/24W/30W
Protective led shop downlight: IP20/IP42/IP54/IP65 of LED down light fitting
Flexible range a clipping from Ø120mm to 240mm of LED down light
Note that:
220-240Vac SAA version with 1.2 m flex and plug
Build-in Driver operates at 220-240V AC, but External Driver supports 85-265V AC at 50-60hz frequency variations.
For circulation areas such as hallways and staircases
