IP66 Seamless Splice High Output LED Tri Proofs

Fanxstar is the LED Tri proofs lights IP66 Seamless Splice High Output LED Tri Proofs manufacturer and supplier in China. Trilamp A3 is IP66 waterproof seamless splice High output batten.We offer LED Tri proof luminaires products with the high- quality and low price for all clients in the past 6 years. Our business world-widely with exporting to over 90 countries and regions. We will always work positively with our partners and customers to improve and explore more flexible and customized, user-friendly LED Tri proof light , to reach win-win business model.

Send Inquiry

Product Description
IP66 Seamless Splice High Output LED Tri Proofs


FANXSTAR IP66 Waterproof Seamless Splice High Output Batten Trilamp A3

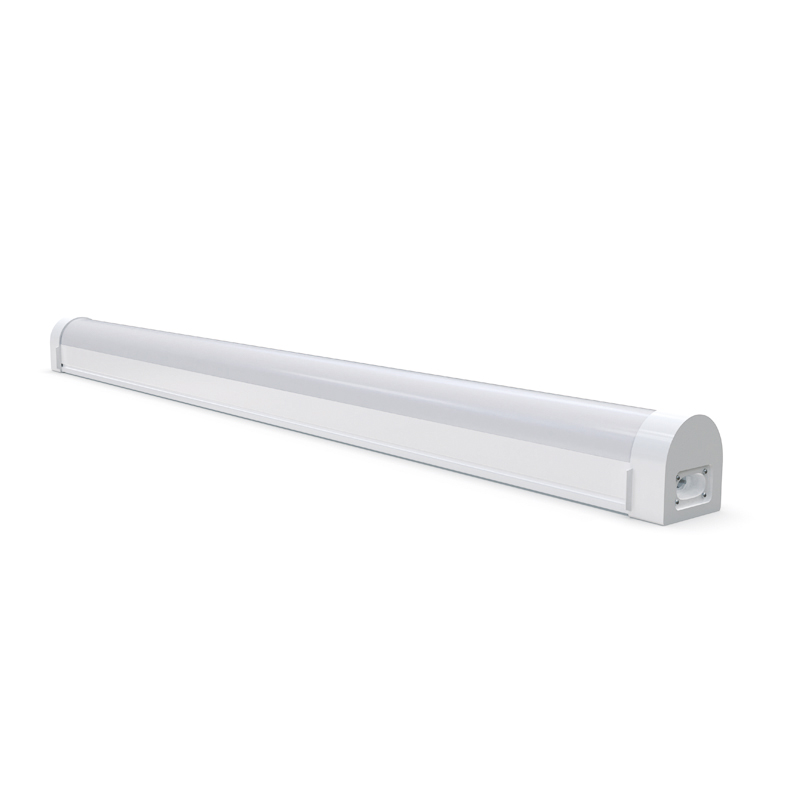

This FANXSTAR LED Tri proof light TLA3 is IK08 robust LED batten with upgraded IP66 rate. LED Tri proof luminaires comes with 5-year warranty. It extra high efficiency output, 170lm/w. Its high resistance can work at high environmental temperatures up to 55ºC . The FANXSTAR LED Tri proof light TLA3 is splicable with patent designed connector, without dark area. LED Tri proof lamp TLA3 batten has surface mounted LED's on a metal-core PCB, full body constructed with UV stable polycarbonate, besa fixings, a piano key terminal block for loop in loop out connections and comes with an ENEC approved, flicker-free driver. TLA3 is available in various sizes and wattages from 600mm to 2400mm. As well as the standard 1200mm and emergency 3H versions with LiFePo4 battery, there are options with DALI,1-10V dimming , and integral microwave or batten mount PIR sensors. LED Tri proof light TLA3 can be connected for upto 50 meters with extra RPC(Rear Power Connectors). It has suspended and surfaced mounted version. It is easy to install and maintain for LED Tri proof light TLA3.

Easy-to-Install for LED Tri proof light Trilamp A3

The efficient design of the LED Tri proof light Trilamp A3 fixtures enables replacement of existing lights, with no need for expensive re-wiring or new ceiling configurations.


LED Tri Proof luminaires Ordering Guide

Weatherproof luminaires | Trilamp Seamless

Type of Protection: IP 66

Protection Class: II

Impact Protection: IK08

Beam Angle: 120°

80CRI Standard And 90CRI Optional

Specifications using 5000K and subject to change. All parameters +/- 5%.


FANXSTAR LED Tri proof luminaires Trilamp A3 IP66 Seamless Splice High Output LED Tri Proofs Specification

LED Tri Proof luminaires Specifications data with 600mm length

Version Item No. Description MM=Color temp. Luminous flux
Std. TLA3-2FT18-MMK-N 2' LED Weatherproof Batten light,
Voltage200-240V 50/60Hz,
Power 18W, 80CRI,20-65K
LED Qty 138pcs
2700K
4000K
5000K
5700K
6500K
2280 lm
2500 lm
2520 lm
2500 lm
2450 lm
PRO TLA3-2FT18-MMK-X 2' LED Weatherproof Batten light,
Voltage200-240V 50/60Hz,
Power 18W, 80CRI,20-65K
LED Qty 171pcs
2700K
4000K
5000K
5700K
6500K
2760 lm
2940 lm
2970 lm
2940 lm
2880 lm
Customized TLA3-2FT10-MMK-1 2' LED Weatherproof Batten light,
Voltage200-240V 50/60Hz,
Power 10W, 80CRI,20-65K
LED Qty 190pcs
2700K
4000K
5000K
5700K
6500K
1540 lm
1640 lm
1650 lm
1630 lm
1600 lm


LED Tri Proof luminaires Specifications data with 1200mm length

Version Item No. Description MM=Color temp. Luminous flux
Std. TLA3-4FT36-MMK-N 4' LED Weatherproof Batten light,  Voltage200-240V 50/60Hz,
Power 36W, 80CRI,20-65K
LED Qty 204pcs
2700K
4000K
5000K
5700K
6500K
4490 lm
4990 lm
5040 lm
4990 lm
4890 lm
PRO TLA3-4FT36-MMK-X 4' LED Weatherproof Batten light,  Voltage200-240V 50/60Hz,
Power 36W, 80CRI,20-65K
LED Qty 266pcs
2700K
4000K
5000K
5700K
6500K
5520 lm
5880 lm
5940 lm
5880 lm
5820 lm
Customized TLA3-4FT20-MMK-1 4' LED Weatherproof Batten light,  Voltage200-240V 50/60Hz,
Power 20W, 80CRI,20-65K
LED Qty 286pcs
2700K
4000K
5000K
5700K
6500K
2680 lm
3260 lm
3300 lm
3260 lm
3200 lm


LED Tri Proof luminaires Specifications data with 1500mm length

Version Item No. Description MM=Color temp. Luminous flux
ECO TLA3-5FT54-MMK-N 5' LED Weatherproof Batten light,  Voltage200-240V 50/60Hz,
Power 54W, 80CRI,20-65K
LED Qty 350pcs
2700K
4000K
5000K
5700K
6500K
6730 lm
7480 lm
7560 lm
7480 lm
7030 lm
PRO TLA3-5FT54-MMK-X 5' LED Weatherproof Batten light,  Voltage200-240V 50/60Hz,
Power 54W, 80CRI,20-65K
LED Qty 430pcs
2700K
4000K
5000K
5700K
6500K
8280 lm
8820 lm
8910 lm
8820 lm
8730 lm
Customized TLA3-5FT28-MMK-1 5' LED Weatherproof Batten light,
Voltage200-240V 50/60Hz,
Power 28W, 80CRI,20-65K
LED Qty 377pcs
2700K
4000K
5000K
5700K
6500K
4290 lm
4570 lm
4620 lm
4570 lm
4530 lm


FANXSTAR LED Tri proof luminaires Trilamp A3 IP66 Seamless Splice High Output LED Tri Proofs Feature And Application

Compliant to EEC C/D, Directive (EU) 2019/2020

High output LED, up to 170lm/w luminaire efficiency

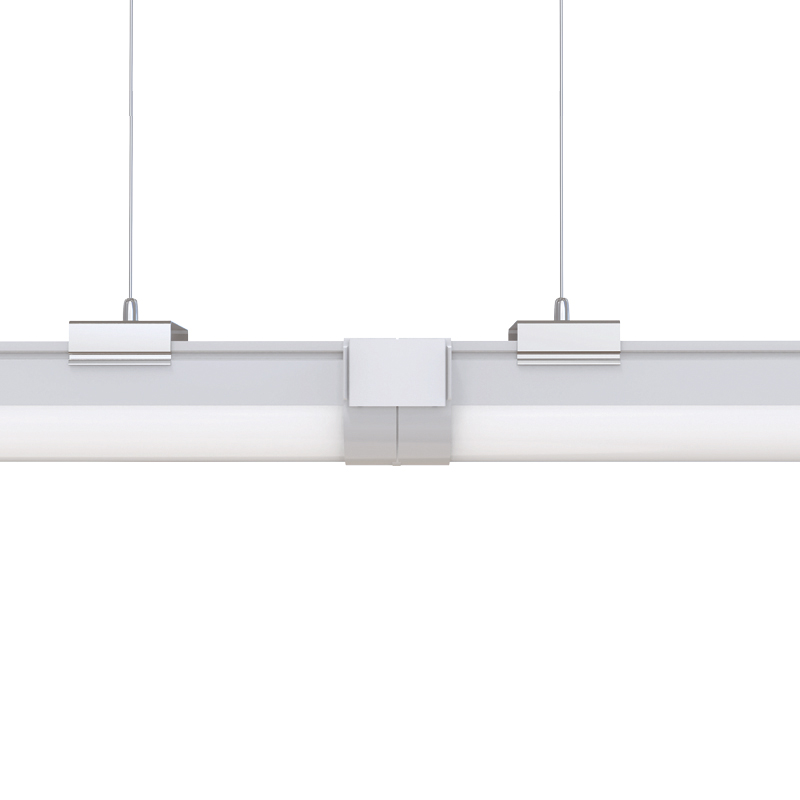

Easy splice with Patent designed plug-ins.

High ambient temperature up to 55ºC

Customized length available,flexible from 600(2FT) to 2400mm(8FT).

Dimming version available, 1-10V and DALI

3W Emergency 3 hours version available, with LiFePO4.

Max 50 meters extra long serie extention with RPC(Rear power connectors).

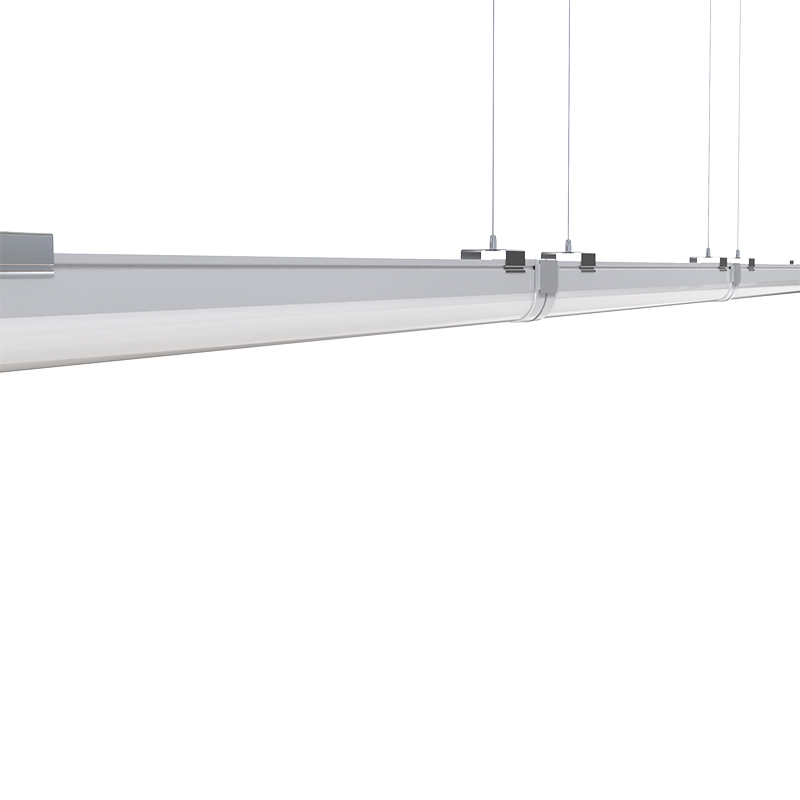

No dark area with series connections.

Waterproof (IP66) & Impact-resistant (IK08)

Surface mounted and suspend mounted available.



FANXSTAR LED Tri proof luminaires Trilamp A3 Details

Excellent IP66 waterproof performance of LED Tri Proofs


Max 50 meters extra long serie extention with PRC(Rear power connector) of LED tri-proof lights

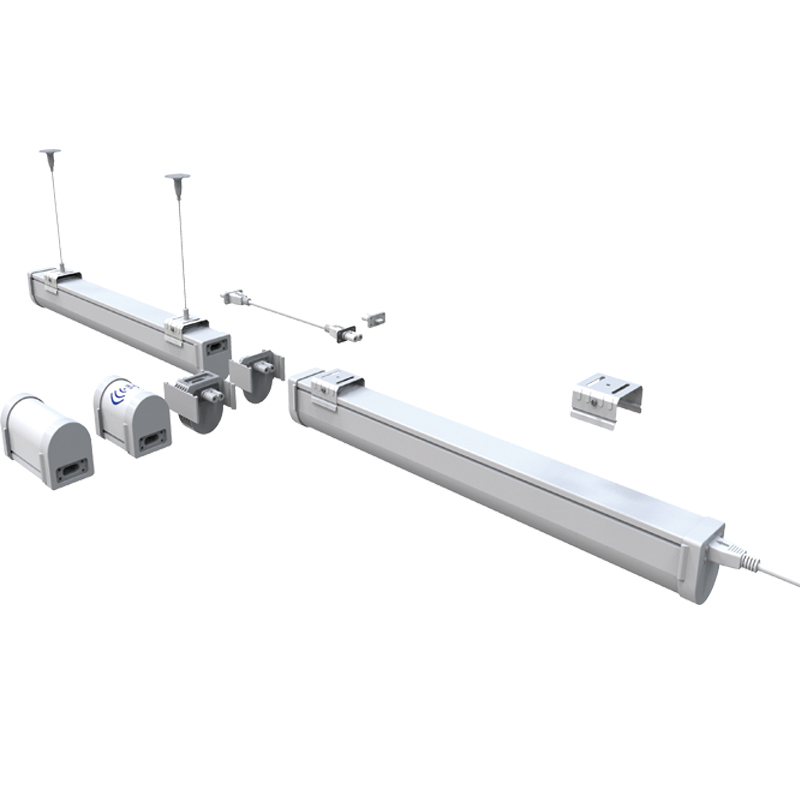

Easy splice with Patent designed plug-ins and LED tri proof lights


High output LED, up to 170lm/w luminaire efficiency of LED tri proof luminaire


Dimming version available, 1-10V and DALI of emergency LED tri proof luminaire with LiFe PO4 battery backup


Faster and lower cost installation of LED tri proofs fixture


LED Tri proof luminaires Trilamp A3 Luminous Intensity Distribution Diagram


LED Tri proof light Installation

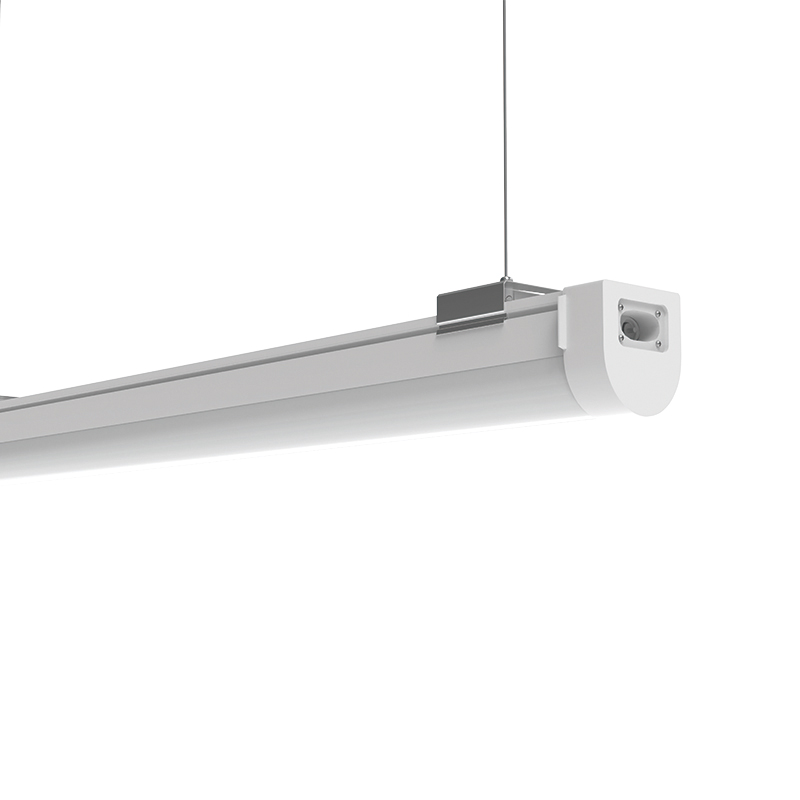

Surface mounted and suspend mounted available


Accessories for seamless LED Tri proof luminaires


LED Tri Proof Luminaires 2 Lines Accessories for Trilamp seamless


LED Tri Proof Luminaires 4 Lines Accessories for Trilamp seamless


LED Tri Proof luminaires Other Accessories for Trilamp seamless
