Low Voltage LED Waterproof Lamp
  • Low Voltage LED Waterproof LampLow Voltage LED Waterproof Lamp
  • Low Voltage LED Waterproof LampLow Voltage LED Waterproof Lamp
  • Low Voltage LED Waterproof LampLow Voltage LED Waterproof Lamp
  • Low Voltage LED Waterproof LampLow Voltage LED Waterproof Lamp
  • Low Voltage LED Waterproof LampLow Voltage LED Waterproof Lamp
  • Low Voltage LED Waterproof LampLow Voltage LED Waterproof Lamp

Low Voltage LED Waterproof Lamp

Nestled in the charming Shenzhen, China, Fanxstar emerges as an outstanding and prominent leader specializing in crafting and supplying superior and high-quality LED tri-proof lamps. The Trilamp A7 exemplifies our unwavering commitment to being a truly remarkable IP65 waterproof low voltage LED Tri-proof Luminaire. Across the vast globe, we have gained widespread acclaim for delivering extraordinary and unparalleled quality LED tri-proof luminaires at highly competitive and exceptionally appealing prices. Our unwavering dedication to excellence is strongly underlined by the company's strict adherence to the ISO9001-2015 superior quality management system. Moreover, our products have obtained a multitude of renowned and prestigious certifications including CB, ENEC, TUV, CE, ERP, SAA, and others, firmly solidifying our unwavering commitment to meeting rigorous and exacting quality benchmarks.

Send Inquiry

Product Description

FANXSTAR 24-36-48VAC/DC Low Voltage Solution IP66&IK10 for Temporary Lighting Trilamp A7

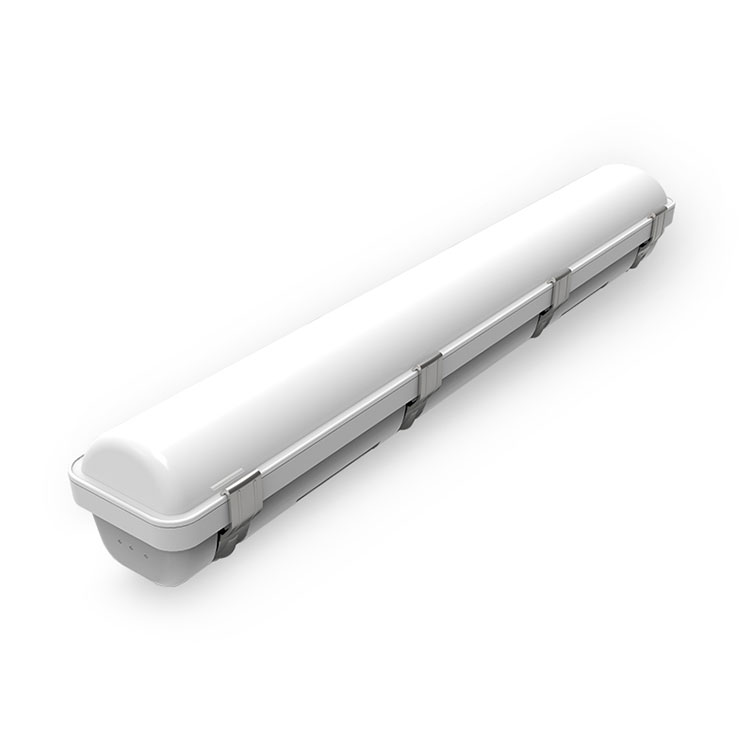

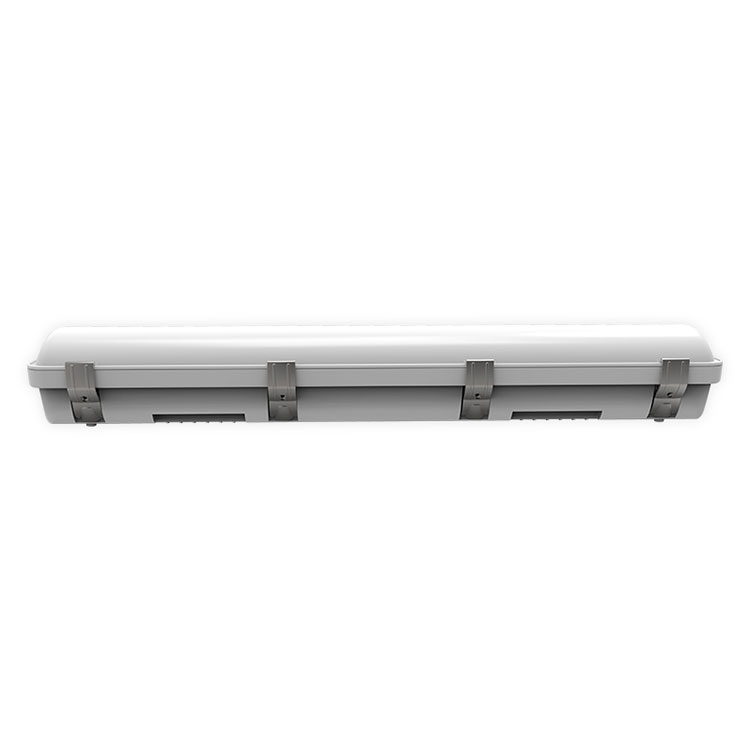

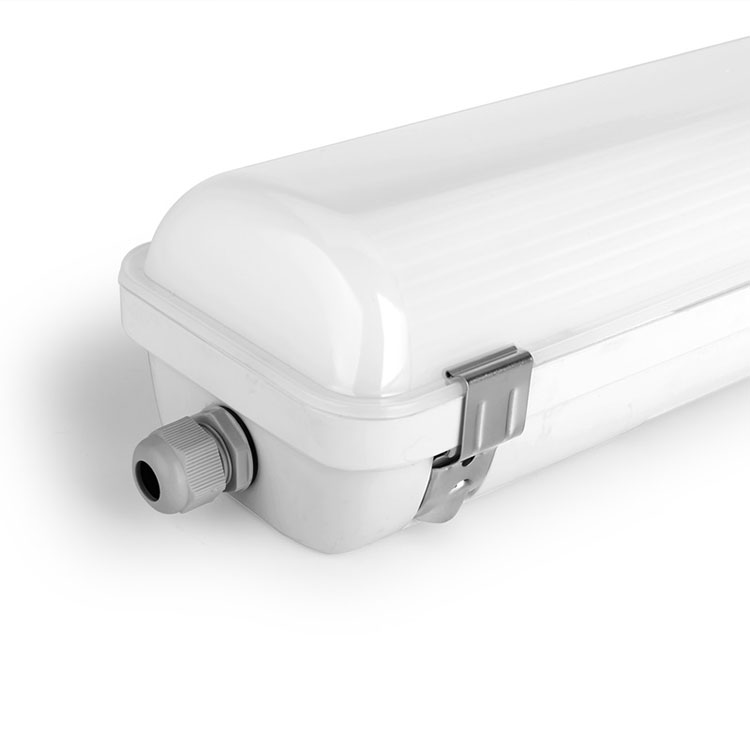

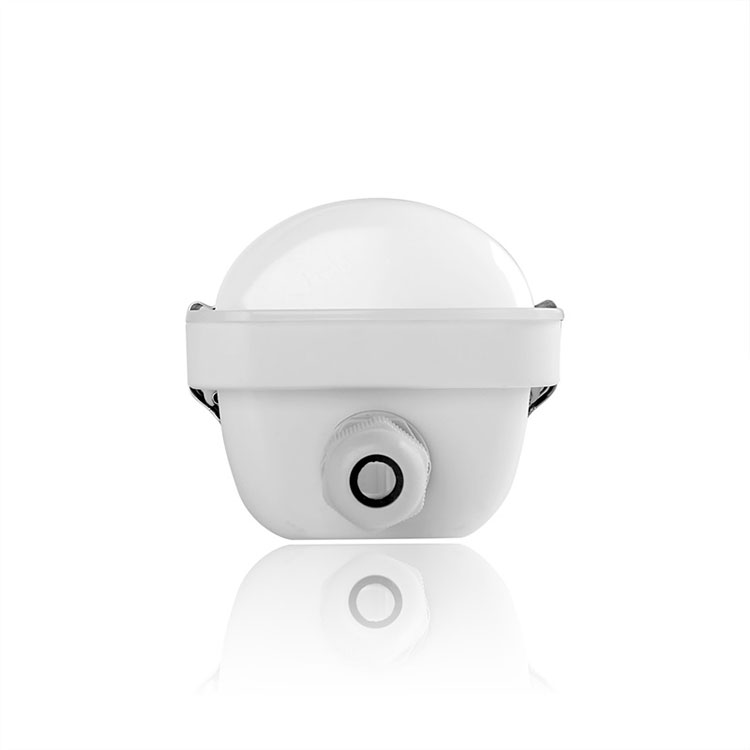

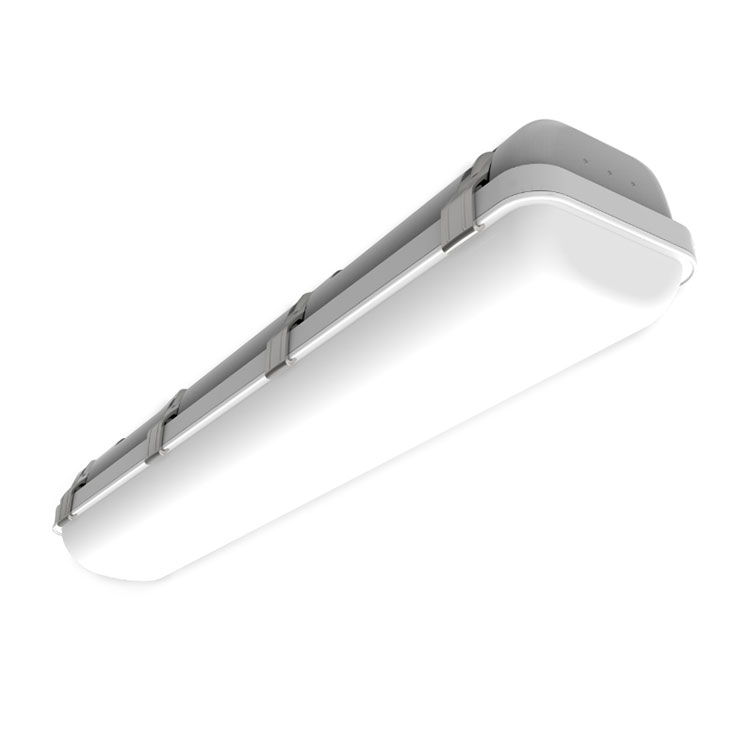

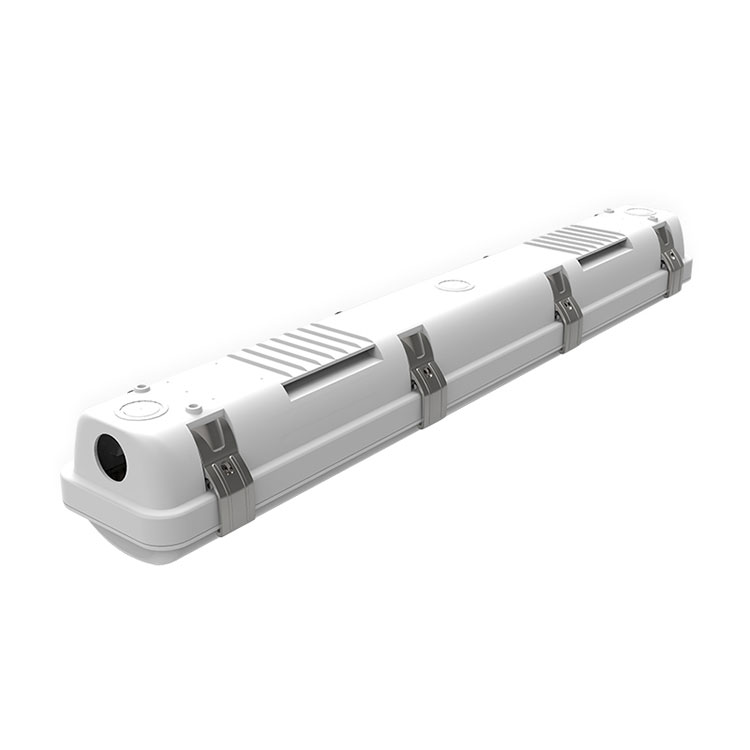

The FANXSTAR Trilamp A7 is a low-voltage LED waterproof light with IP65&IK10 rating . Its intelligent power supply (FX-DRQ045FC-FT), designed by Fanxstar, supports a wide AC/DC 24-48V input range, enhancing energy efficiency and reducing power consumption.

The LED Tri Proof luminaire offers dip switch power and color temperature control, simplifying inventory management.

With 5.8G microwave induction module, the LED Tri-proof Batten can control lighting ON/OFF and brightness, ideal for cold storage and explosion-proof areas. The LED Tri proof lighting fixtures come with a 5-year warranty for added peace of mind.



FANXSTAR LED Tri-proof luminaire Trilamp A7 Specification

Item Part Number A7-2FT20-MMK-LV A7-4FT30-MMK-LV A7-5FT40-MMK-LV
Description Low-voltage LED weatherproof Batten Light
Working Mode of Operation Low-voltage
Input Voltage&Frequency 24-36-48Vac/dc,60Hz
Wiring Connection 923/PA14 terminal blocks, Loop in and Loop out
Output Light Source High lumens SMD2835
Color Temperature MM=27-65 stands for 2700-6500K orTri-CCT(3000K/4000K/5700K)
Luminous Flux 140lm/w±10%
Power Consumption 20W 30W 40W
Controls Protection Overcharge, low voltage disconnect, overcurrent, short circuit
Multimode Normal, Extra
Physical Construction Diffuser - high transmission opal polycarbonate, chassis -polycarbonate
Mounting Surface mounted - ceiling / wall /suspend
Colour Gray RAL7035
Dimensions L x W x H(mm) 600x95x83 1200x95x83 1500x95x83
IP/IK Rating IP66 & IK10
Weight 1.2kg 2.2kg 2.8kg
Warranty 5 years on product
Environment Operating Temperature -30° to 50°C
Relative Humidity -10 to 95%
Compliance Standards CE/UKCA/RCM


FANXSTAR LED Tri-proof lights Trilamp A7 Feature And Application

Waterproof (IP66) & Impact-resistant (IK10)

20w/30w/40w Switchable Power & Output

Tri-CCT Optional: 3000K/4000K/5700K

24-36-48VAC/DC Solution for Temporary Lighting

Integrated with the optional microwave dimming motion sensor


FANXSTAR LED Tri-proof lighting batten luminaire Trilamp A7 Details
Low Voltage Intelligent Driver:


LED Tri-proof light Trilamp A7 Dimensions


LED Tri-proof lights Trilamp A7 Packing
