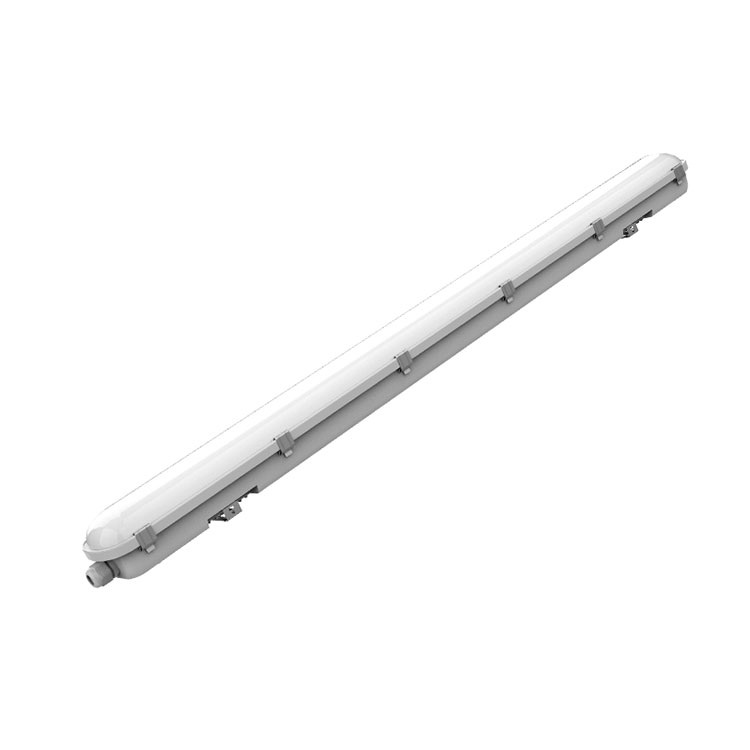

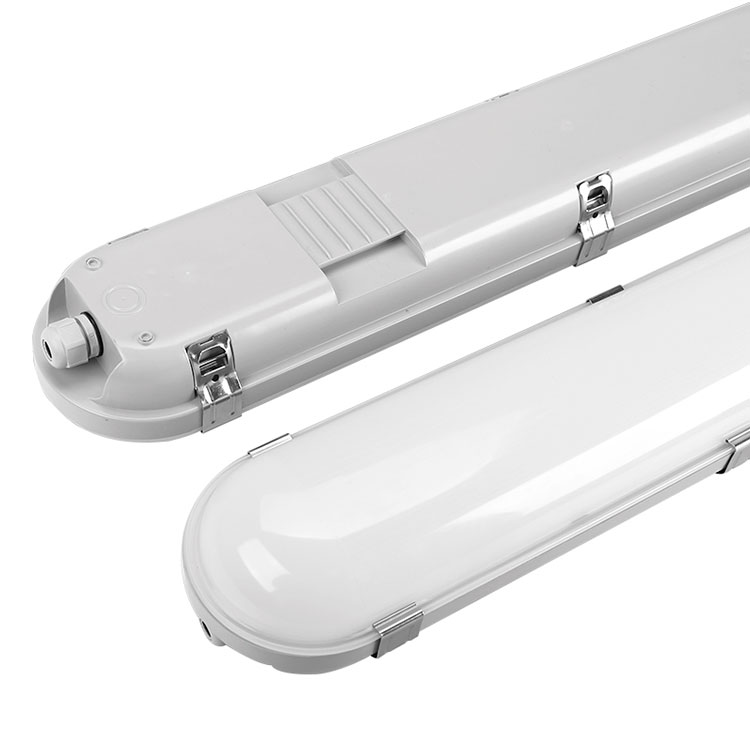

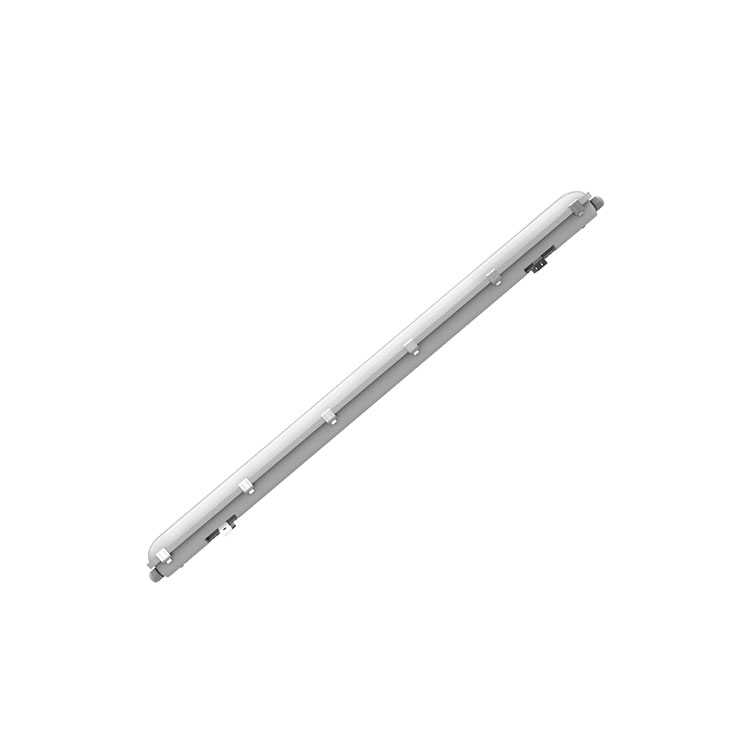

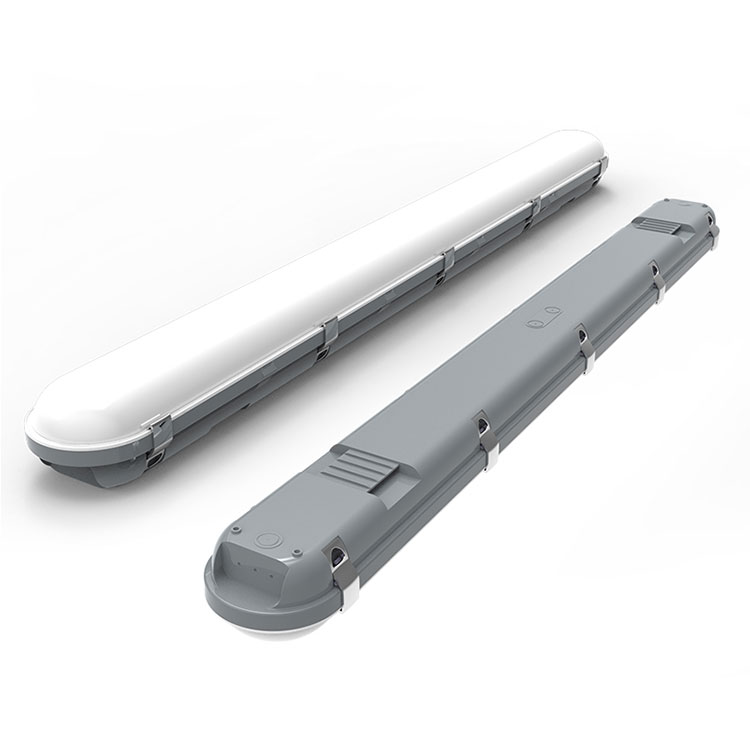

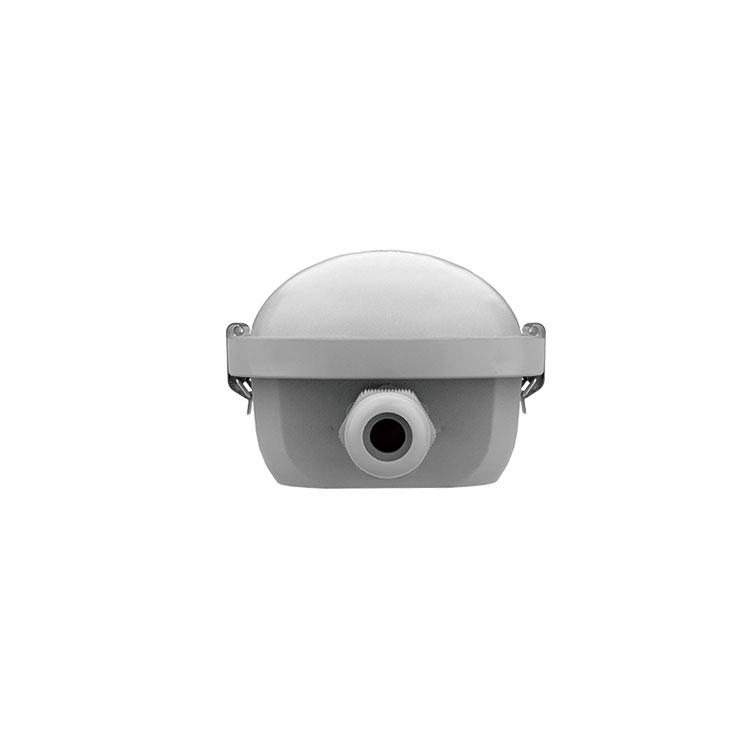

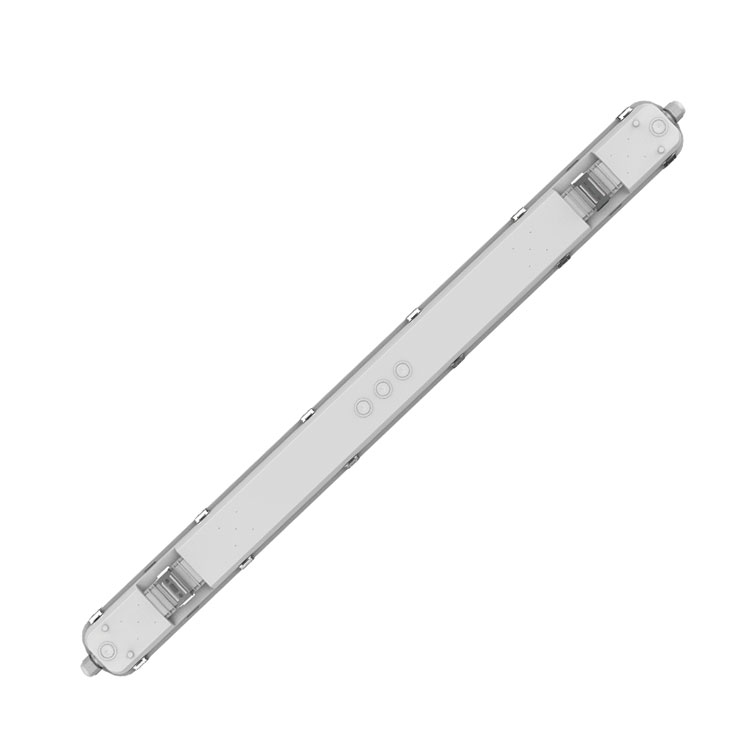

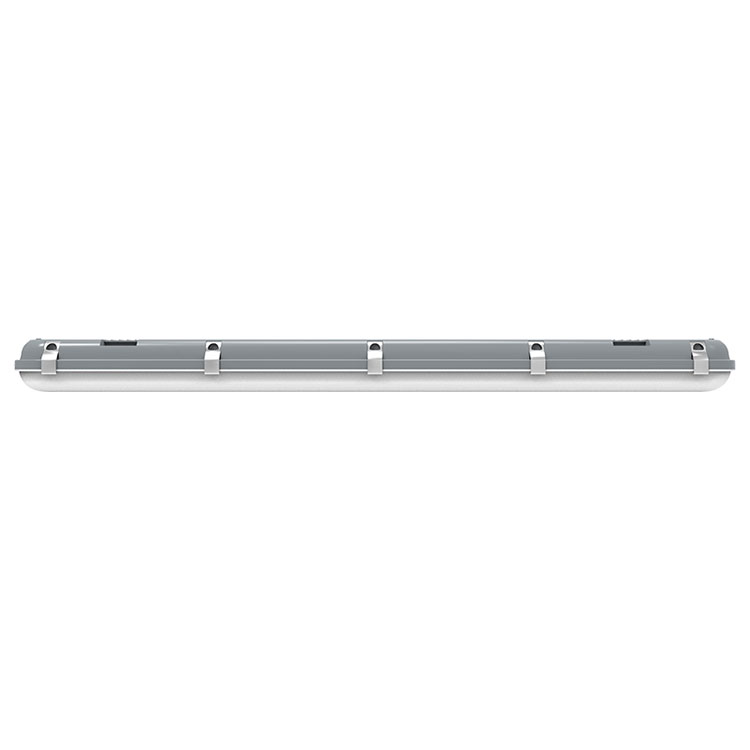

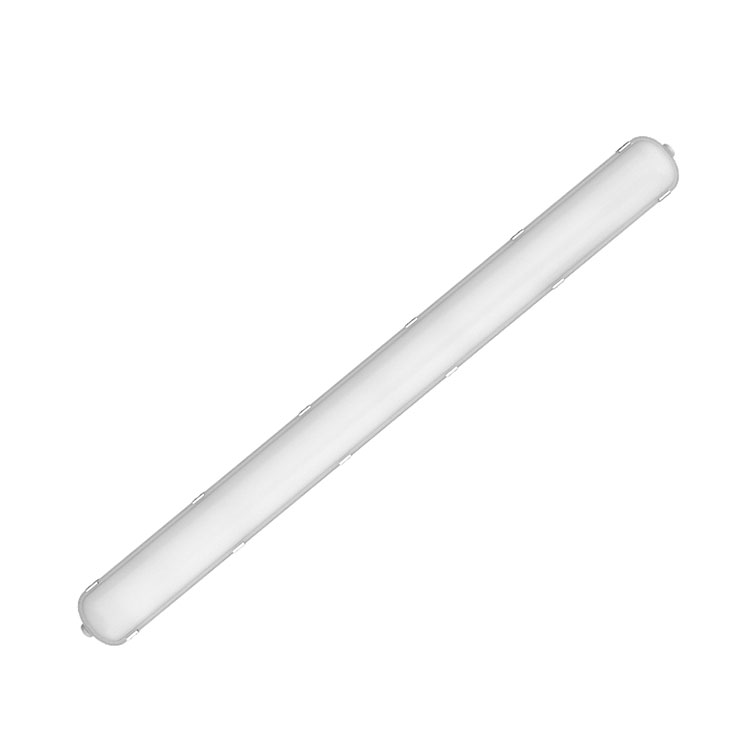

EU 5.8G Sensor LED Triproof Luminaire

Introducing the Trilamp A4 from FANXSTAR, a pinnacle in intelligent lighting innovation. Crafted as the Intelligent 5.8G sensor LED Tri-proof luminaire, this luminaire stands as a testament to FANXSTAR's expertise in LED tri-proof lamps manufacturing and supply within China. In moments where LED Tri-proof lighting becomes crucial, delivering superior quality and versatile options to your customers is paramount. FANXSTAR fulfills this need and more, presenting an extensive array of effortlessly installable LED Tri-proof luminaires tailored for diverse applications and scenarios. Elevate your expectations with FANXSTAR, as it offers unparalleled performance and a spectrum of choices—a definitive collection of top-tier LED Tri-proof lighting that sets new standards in the market.

Send Inquiry

Product Description

FANXSTAR Intelligent 5.8G Sensor Luminaire
EU IP65 LED Waterproof Batten Light Trilamp A4

Introducing the Trilamp A4, the pinnacle product of the led tri-proof light Trilamp Family, proudly carrying the Crown Brand. This revolutionary lighting solution has been successfully deployed in Europe and Australia for more than five years.

Setting a benchmark in the industry, the led Tri Proof lamp Trilamp A4S boasts an ultra-narrow 11mm antenna, ensuring seamless illumination even when operating in sensor mode.

The product features an integrated 5.8G microwave motion detector, controlled by eight toggle switches for intelligent functionality. The waterproof batten light offers three-level dimming control and the adaptability to personalize detection range, hold duration, and daylight threshold to meet your specific requirements.

A noteworthy aspect of the FS007B/R sensor is Dual PD Technology, enabling automatic brightness control, enhancing both convenience and energy efficiency for comprehensive lighting solutions.

Special options include: The dual-circuit version for standard lighting and emergency kits, equipped with 20-300V full-voltage easily detachable emergency units, elevating your Industiral luminaire Trilamp A4 lighting experience to new heights — where innovation and reliability converge.

FANXSTAR LED Water-proof luminaires Trilamp A4 EU Specification

Item	Part Number	A4-2FT20-MMK-S	A4-4FT40-MMK-S	A4-5FT60-MMK-S
	Description	Dual PD build-in Dimmable Microwave Sensor Batten
Working	Mode of Operation	0-10V/ 10VPWM
Input	Voltage&Frequency	220-240Vac, 50/60Hz
	Wiring Connection	923 terminal blocks, Loop in and Loop out
Output	Light Source	High lumens SMD2835
	Color Temperature	MM=27-65 stands for 2700-6500K
	Luminous Flux	140lm/w±10%
	Power Consumption	20W	40W	60W
Controls	Protection	Overcharge, low voltage disconnect, overcurrent, short circuit
	Multimode	Brightness Control
Physical	Construction	Diffuser - high transmission opal polycarbonate, chassis - polycarbonate
	Mounting	Surface mounted - ceiling / wall
	Colour	Gray RAL7035
	Dimensions L x W x H(mm)	600x95x82	1200x95x82	1500x95x82
	IP/IK Rating	IP65 & IK10
	Weight	1.0kg	2.0kg	2.6kg
	Warranty	5 years on product
Environment	Operating Temperature	-30°to 50°C
	Relative Humidity	-10 to 95%
Compliance	Standards	CE/UKCA/RCM
Accessories	Microwave Dimming Sensor	P/N: A4S: MS007B/MS007R
	Replacement Battery	MR002 for MS007R

FANXSTAR LED Tri-proof lamp Trilamp A4 Feature And Benefits

Dual PD Sunlight and LEDs

Dimmable 5.8G microwave sensor

No shadow/ XH2.54 Plug-play Crystal Connector

923 terminal blocks, Loop in and Loop out, Φ1.0-2.5㎡through-wiring

Flexible installation through sliding mounting bracket. Ideal for luminaire replacement

Mounting Height: Max.5m (Ceiling mounted); 1.5-1.8m (Wall Mounted)

FANXSTAR LED Tri proof Trilamp A4 Details

Intelligent 5.8G microwave motion sensor of Triproof LED Light

Standard Color rendering index Ra 80 and Ra 90 Optional Triproof LED Lighting

The Triproof LED Lights is equipped with multi-level dimming with fixed power sensor driver: LC-20S/ LC-40S/LC-60S/LC-70S

Symmetrical light distribution, LED rated life 100,000h(L80,B10) and 11mm supper narrow antenna, No dark area on sensor mode of Triproof LED Lamp.

5.8G Microwave Sensor data for LED Tri proof fixture Trilamp A4

	MS007B/R
Microwave frequency	5.8GHz±75MHz
Microwave power	<0.3mW
Sensitivity	100%/50%/25%
Hold time	5s/90s/5min/10min
Daylight threshold	10Lux/25Lux/50Lux/Disable
Stand-by period
Stand-by dimming level	0%/10%/30%
Mounting height	Max.5m (Ceiling mounted); 1.5-1.8m (Wall Mounted)
Detection range	Radius Max.6m (Ceiling mounted); Max.8m (Wall Mounted)1.8
Size (LWH)	112.51915mm
