Ultra-thin IP65 5.8G Intelligent Emergency LED Bulkhead

Fanxstar proudly leads the LED downlights industry as a distinguished manufacturer and supplier in China, showcasing our flagship product, the C300—an epitome of our commitment, featuring an exceptional LED Ceiling Light coupled with an IP65 waterproof High output LED ceiling down lighting solution.
Over the past 7 years, our steadfast commitment has been to provide top-tier LED ceiling downlight luminaires at competitive prices to our valued clients. With a global presence spanning 90 countries and regions through our robust export network, we've firmly established our footprint worldwide. Our ongoing dedication revolves around proactive collaboration with partners and customers, aimed at consistently refining and innovating more adaptable, customized, and user-friendly LED ceiling light fixtures. This enduring commitment remains at the core of our mutually beneficial business model, prioritizing growth and stakeholder satisfaction as our utmost objectives.

Send Inquiry

Product Description

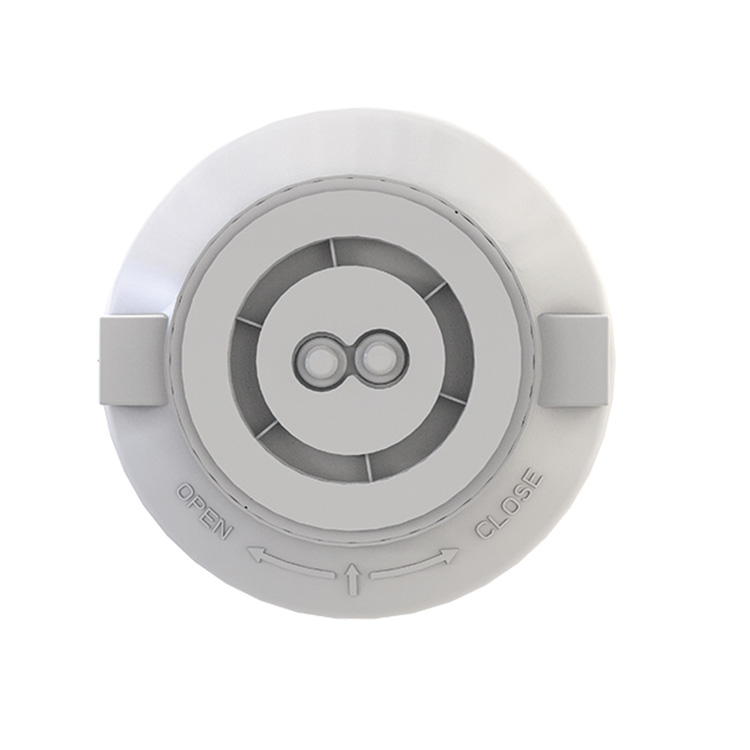

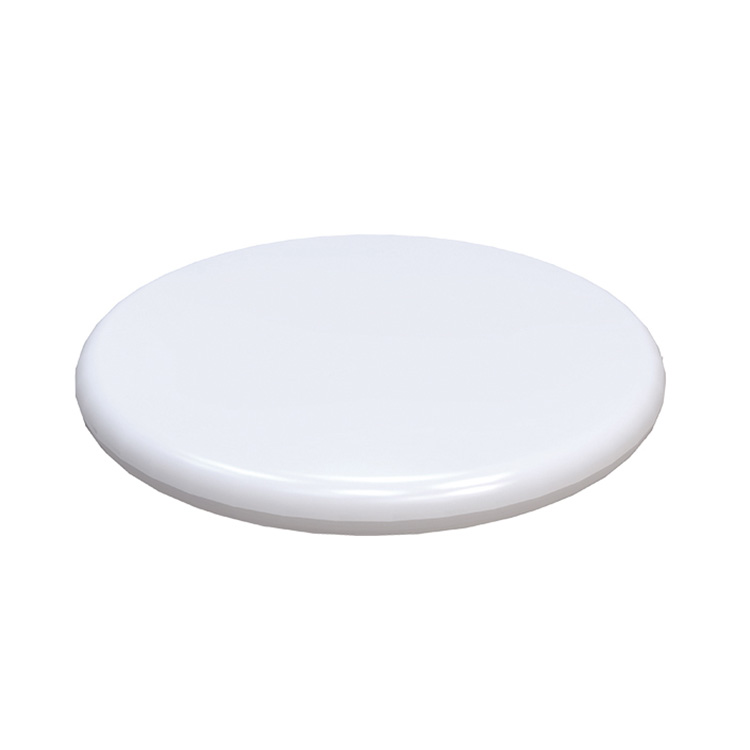

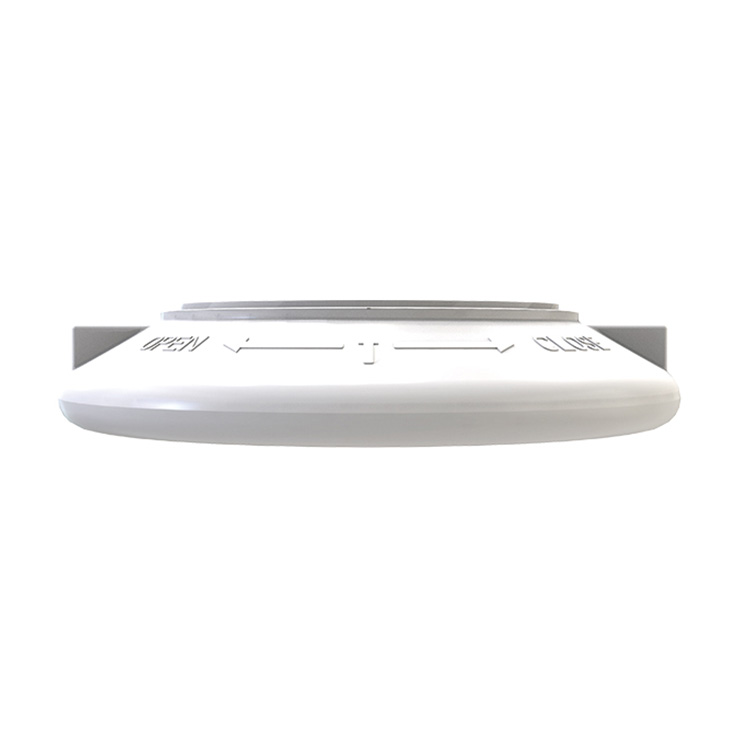

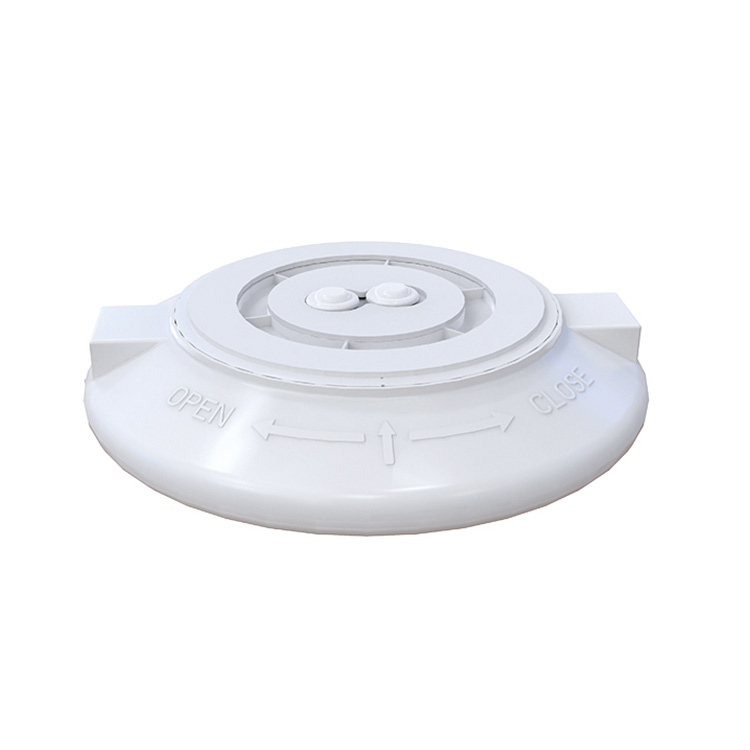

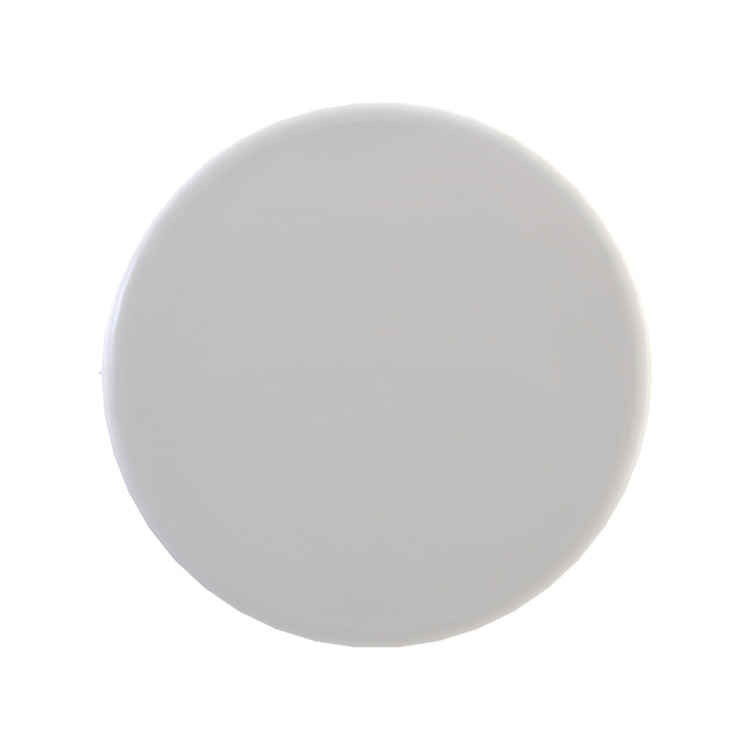

FANXSTAR IP65 LED Circular & Bulkhead Ceiling Light C300

This Clight C300 has an another name for LED bulkhead lights , especially in UK. LED Ceiling Light C300 is a patented product of Fanxstar in 2020, mask and lamp body two-in-one integrated design, with the fixed mounting tray independent. It is equipped with long-life, high-efficacy 2835R LEDs and a reliable LED driver for consistent performance. LED Ceiling Light C300 combine a beautiful circular design with outstanding features to deliver superior energy efficiency and frameless brightness results, has 180°to 270°wider beam areas with no shadow. Whether it is the selection of materials, the optimization of structural height, the increase of induction and emergency functions, all of them are aimed at creating excellent cost performance of LED Ceiling Light Luminaire C300, which is practical but not wasteful, reliable but not expensive. The waterproof protection level of the LED Ceiling Lighting fixture C300 is IP65, which is the top existence in the ceiling light. This is crucial in areas where there is parking garages, basements, outdoor balcony, bathroom, etc.

LED Ceiling Down Light C300 Ordering Guide

W eatherproof luminaires| Bulkhead C300

Type of Protection: IP 65

Protection Class: Ⅰ

Impact Protection: IK08

80CRI Standard And 90CRI Optional

Dual-way CCT switchable available: typical 4000K/5000K

Specifications using 5000K and subject to change. All parameters +/- 5%

FANXSTAR LED Ceiling Light fitting C300 Specification

Item	Part Number	C300-R12-MMK	C300-R18-MMK	C300-R24-MMK
	Description	Ultra-thin design IP65 LED Circular &Bulkheads Light
Working	Mode of Operation	Multimode - Maintained / Non-Maintained
Input	Voltage &Frequency	220-240Vac, 50/60Hz
	Installation	923/PA10 - Terminal blocks
Output	Light Source	High lumens SMD2835
	Color Temperature	MM=27-65 stands for 2700-6500K
	Luminous Flux	120lm/w±10%
	Power Consumption	12W	18W	24W
Controls	Protection	Overcharge, low voltage disconnect, overcurrent, short circuit
	Multimode	Standy, Sensor and Emergency for optional
Emergency	Charger	16hr intelligent 3-stage charger with battery management system
	Emergency Power	2W (Non-Maintained)
	Duration Time	> 180 minutes
	Testing Facility	Manual test
	Indicators	Battery charger green LED, Function failure through red LED.
Physical	Construction	UL94V0 Flame-retardant polycarbonate
	Mounting	Surface mounted - ceiling
	Colour	White
	Dimensions L x W x H	300mm x 300mm x 58mm
	IP/IK Rating	IP65 & IK05
	Weight	0.75kg
	Warranty	3 years on product and battery
Environment	Operating Temperature	-20° to 50°C
	Relative Humidity	-10 to 95%
Compliance	Standards	CE/UKCA/RCM, EN1838, IEC60598.1, AS/NZS 2293
	AS/NZS 2293 Classification	C0 D63, C90 D40
Accessories	Microwave Dimming Sensor	P/N: C300S: MT024-01/MT024-PIR001
	Replacement Battery
