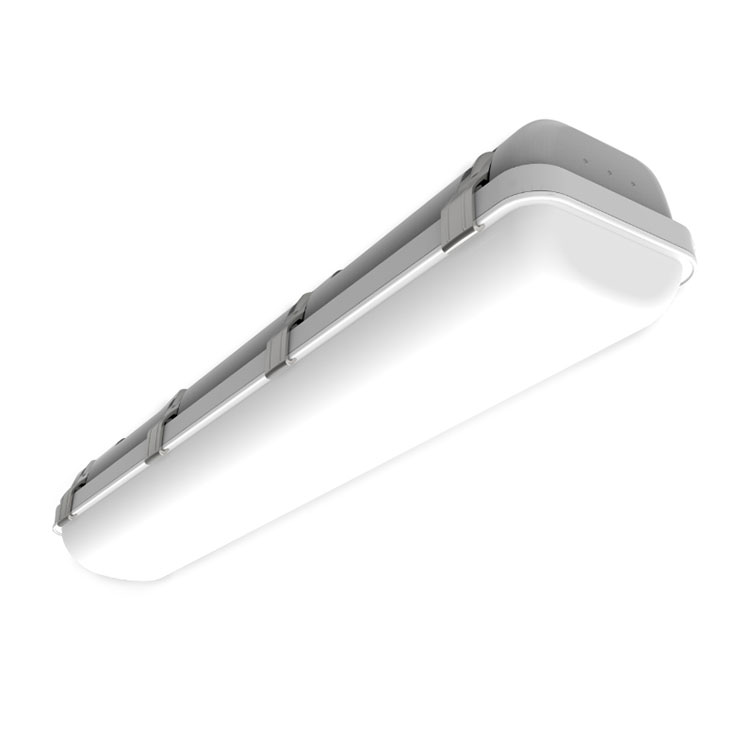

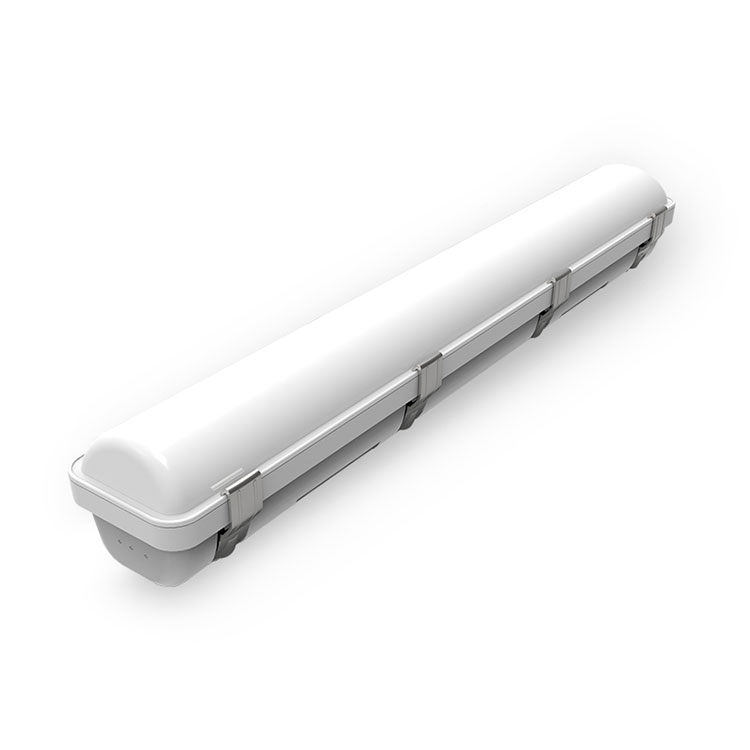

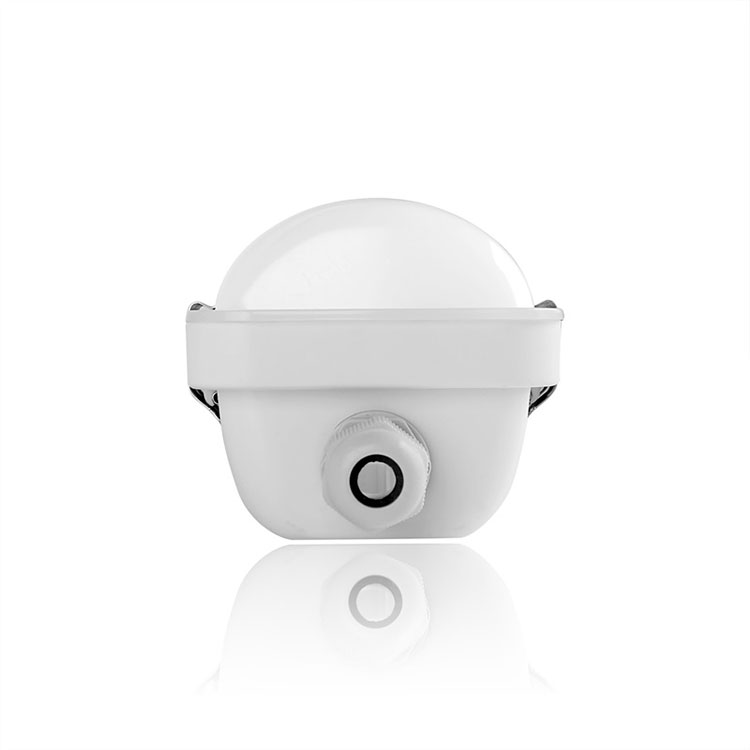

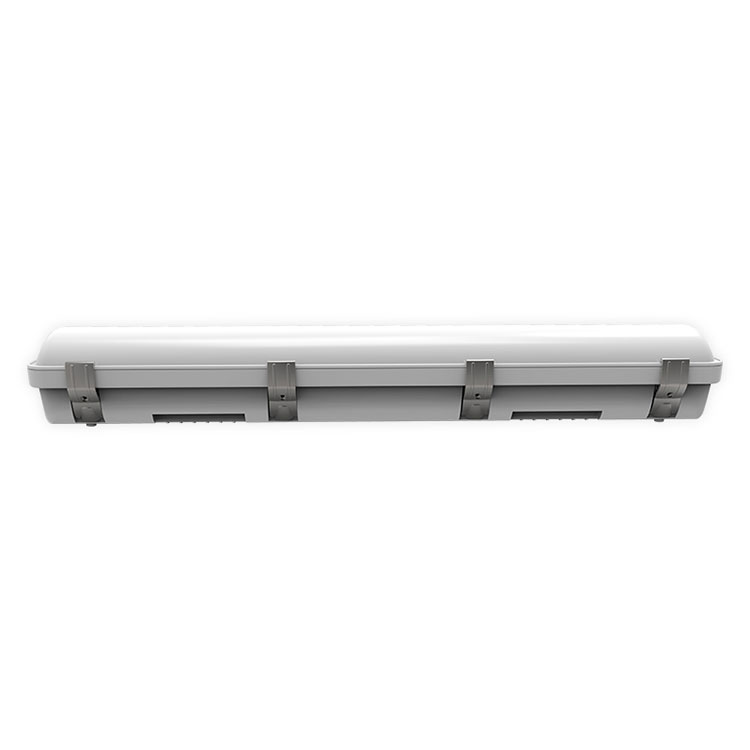

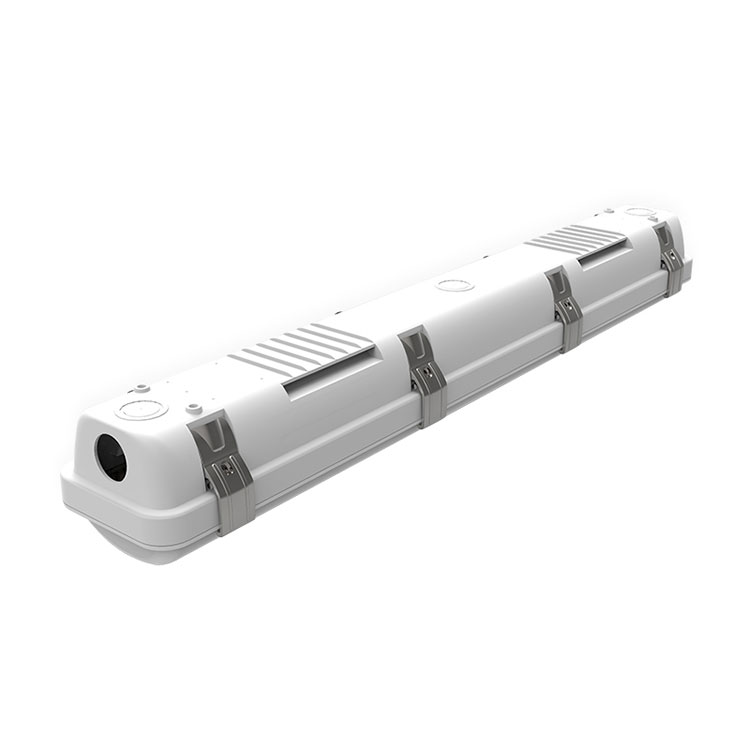

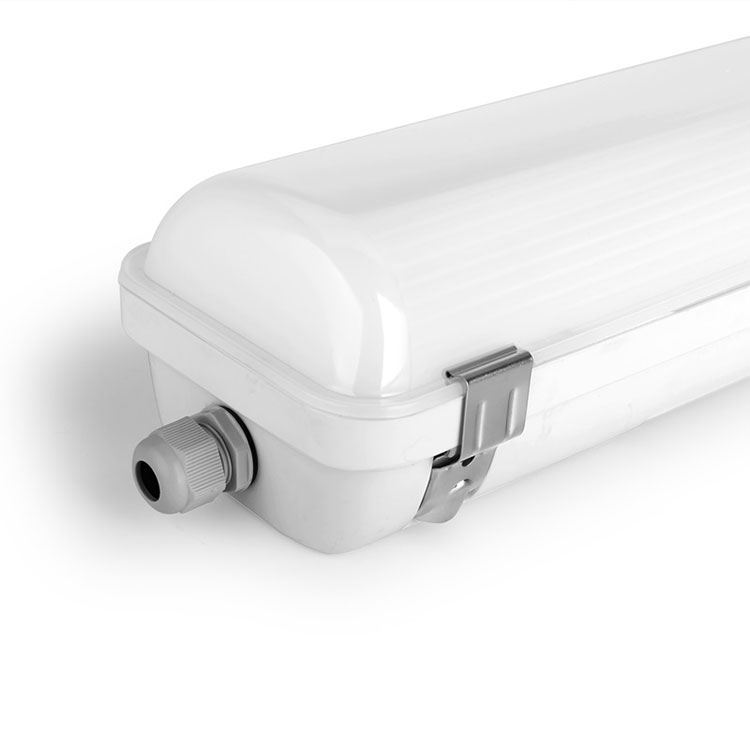

Sensor Low Voltage Triproof LED Fixture
  • Sensor Low Voltage Triproof LED FixtureSensor Low Voltage Triproof LED Fixture
  • Sensor Low Voltage Triproof LED FixtureSensor Low Voltage Triproof LED Fixture
  • Sensor Low Voltage Triproof LED FixtureSensor Low Voltage Triproof LED Fixture
  • Sensor Low Voltage Triproof LED FixtureSensor Low Voltage Triproof LED Fixture
  • Sensor Low Voltage Triproof LED FixtureSensor Low Voltage Triproof LED Fixture
  • Sensor Low Voltage Triproof LED FixtureSensor Low Voltage Triproof LED Fixture

Sensor Low Voltage Triproof LED Fixture

Located in Shenzhen, China, Fanxstar stands out as a prominent leader expert in creating and providing excellent LED tri-proof lamps. The Trilamp A7 serves as a demonstration of our firm commitment - a remarkable IP65 waterproof low-voltage LED tri-proof luminaire. Globally, we have gained high acclaim for delivering unparalleled high-quality LED tri-proof luminaires at extremely competitive prices. Our commitment to excelling is highlighted by the company's strict compliance with the ISO9001-2015 quality management system. In addition, our products have obtained a number of well-known certifications such as CB, ENEC, TUV, CE, ERP, SAA, etc., which confirms our determination to meet strict quality standards.

Send Inquiry

Product Description

FANXSTAR Extra Low Voltage Microwave Sensor Safer, Smarter, More Energy-efficient Batten Trilamp A7

The FANXSTAR Trilamp A7 serves as a low-voltage LED water-resistant light boasting an IP65 & IK10 rating. The intelligent power supply (FX-DRQ045FC-FT) devised by Fanxstar supports a extensive AC/DC 24-48V input scope, which enhances energy efficiency and decreases power consumption.

The LED Tri Proof lighting offers dip switch power and color temperature manipulation, facilitating inventory management.

Equipped with a 5.8G microwave induction module, the LED Tri-proof Batten is capable of controlling the lighting's ON/OFF and brightness, which is perfect for cold storage and explosion-proof zones. The LED Tri Proof lighting fixtures are accompanied by a 5-year warranty for extra peace of mind.



FANXSTAR LED Triproof luminaire Trilamp A7 Specification

Item Part Number A7-2FT20-MMK-LS A7-4FT30-MMK-LS A7-5FT40-MMK-LS
Description Low-voltage LED weatherproof Batten Light
Working Mode of Operation Low-voltage, 10VPWM
Input Voltage&Frequency 24-36-48Vac/dc , 60Hz
Wiring Connection 923 terminal blocks, Loop in and Loop out
Output Light Source High lumens SMD2835
Color Temperature MM=27-65 stands for 2700-6500K orTri-CCT(3000K/4000K/5700K)
Luminous Flux 140lm/w±10%
Power Consumption 20W 30W 40W
Controls Protection Overcharge, low voltage disconnect, overcurrent, short circuit
Multimode Brightness Control
Physical Construction Diffuser - high transmission opal polycarbonate, chassis -polycarbonate
Mounting Surface mounted - ceiling / wall /suspend
Colour Gray RAL7035
Dimensions L x W x H(mm) 600x95x83 1200x95x83 1500x95x83
IP/IK Rating IP66 & IK10
Weight 1.2kg 2.2kg 2.8kg
Warranty 5 years on product
Environment Operating Temperature -30° to 50°C
Relative Humidity -10 to 95%
Compliance Standards CE/UKCA/RCM
Accessories Dimming Sensor P/N: A7-LS: MS010/MS010R/MS010ER
Remote Control MR002


FANXSTAR LED Triproof lights Trilamp A7 Feature And Application

Waterproof (IP66) & Impact-resistant (IK10)

20w/30w/40w Switchable Power & Output

Tri-CCT Optional: 3000K/4000K/5700K

24-36-48VAC/DC Solution for Temporary Lighting


Tri-proof light 5.8G Microwave Sensor Data

Only 11mm width super compact antenna make no darkness for TLA7-LS Technical data

MS010 / MS010R / MS010ER
Microwave frequency 5.8GHz±75MHz
Microwave power <0.3mW
Sensitivity 100%/75%/50%/25%
Hold time 3s/30s/90s/5min/15min/30min
Daylight threshold 5Lux/25Lux/50Lux/100Lux/150Lux/300Lux/500Lux/Disable
Stand-by period 5s/5min/15min/30min/60min/+∞
Stand-by dimming level 0%/20%/30%/50%
Mounting height Max.5m (Ceiling mounted); 1.5-1.8m (Wall Mounted
Detection range Radius Max.6m (Ceiling mounted); Max.8m (Wall Mounted 1.8
Size (L*W*H) 75*19*15mm


LED Triproof light Trilamp A7 Dimensions


LED Triproof lights Trilamp A7 Packing
