Fanxstar proudly leads the LED highbay lights
Over the past 7 years, our steadfast dedication has been to provide top-tier LED highbay luminaires at competitive prices to our valued clients. With a global presence spanning 90 countries and regions through our robust export network, we've firmly established ourselves worldwide. Our continual dedication centers on proactive collaboration with partners and customers, aiming to consistently refine and innovate more adaptable, customized, and user-friendly LED highbay fixtures. This enduring commitment remains pivotal in our mutually beneficial business model, prioritizing growth and stakeholder satisfaction as our core objectives.

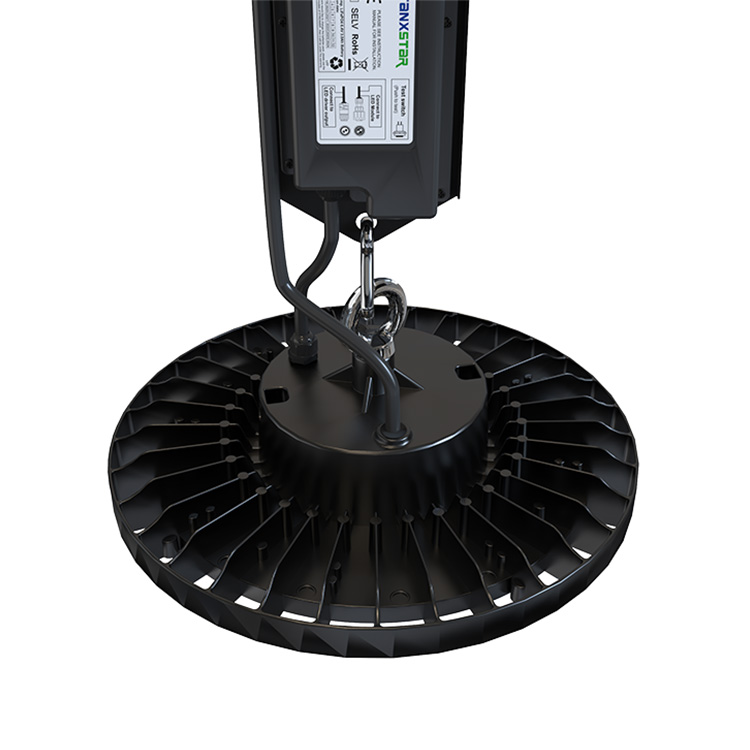

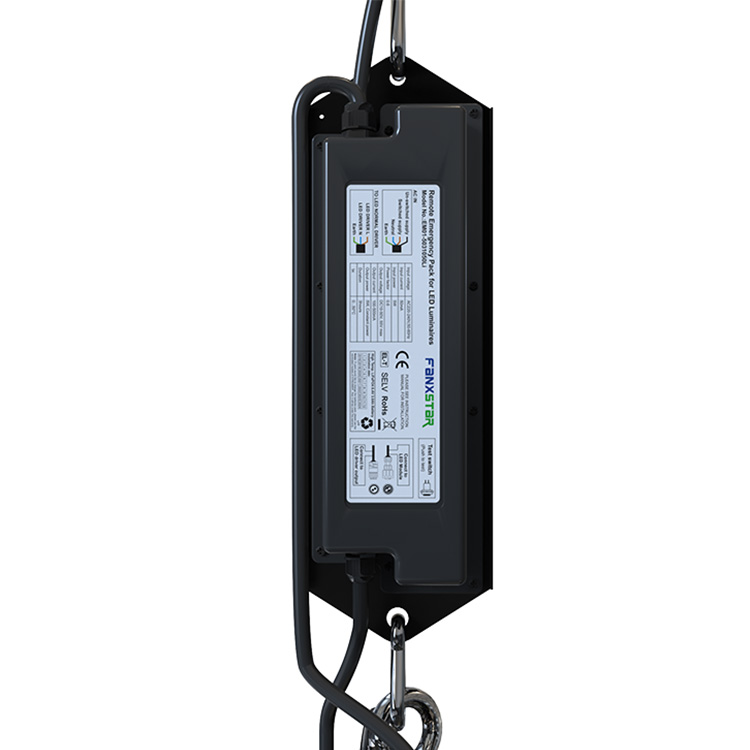

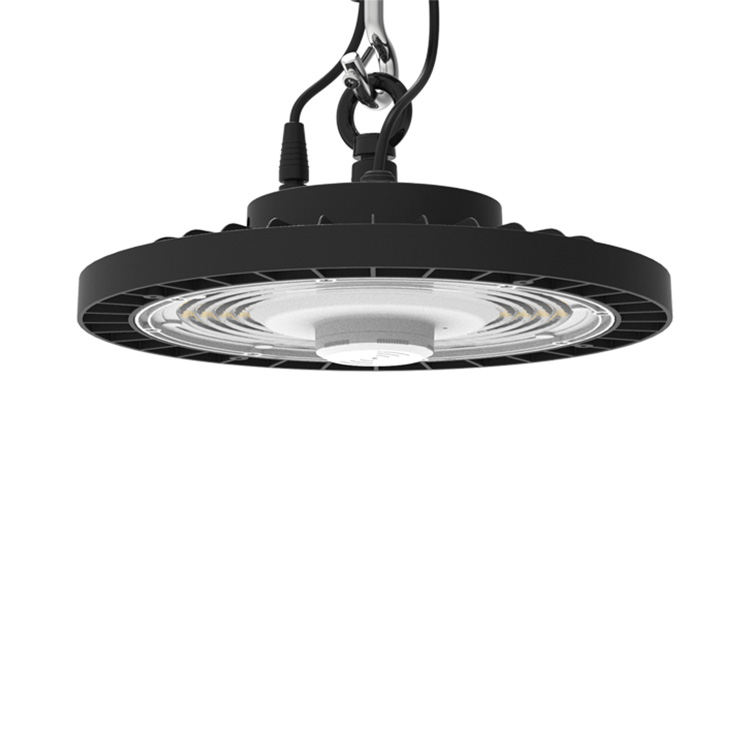

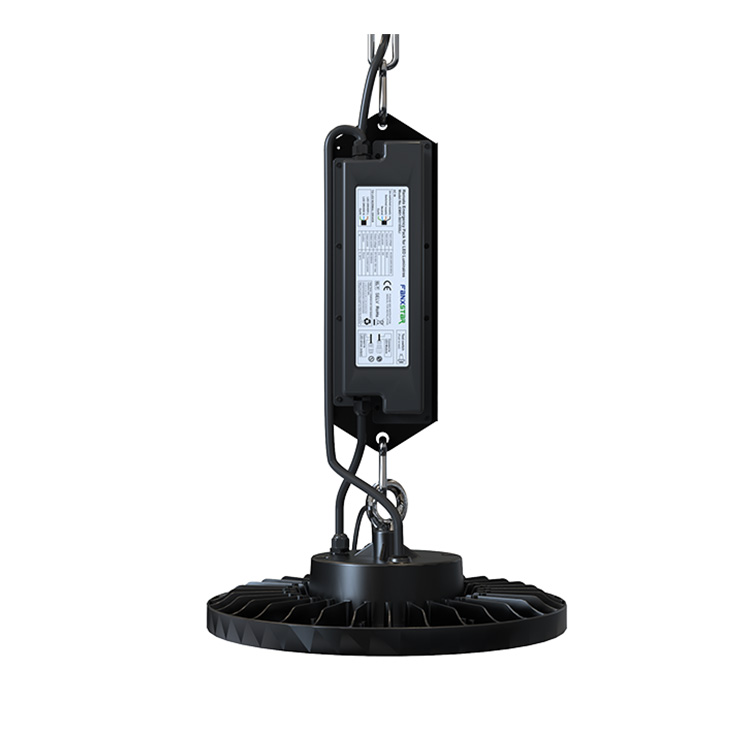

LED Highbay Light H200 is a remarkable product from Fanxstar and plays a key role in their product portfolio. It is an emergency driver specifically designed for LED high bay luminaires and LED flood lights, making it suitable for smart industrial applications. This emergency driver provides 5W of emergency power and is designed to support a wide range of LED loads, with an output voltage range of 20V to 300V DC. This flexibility allows it to cover almost every fitting in warehouse, schools, and facade lighting applications. The LED Highbay Light H200 features a die-cast aluminum housing with an integrated high capacity LiFePO4 battery, providing IP65 and IK08 ratings for durability and protection. The Emergency LED Highbay Light fitting offers a 3-hour emergency time to supply power to the fittings during power outages. The LED Highbay Lights H200 offers two optional installation accessories: horizontal and vertical brackets, allowing for versatile installation options. It also includes additional holes designed to work with a WIFI sensor, enabling the creation of a smart industrial high bay lighting system with various functions such as lux monitoring control, panel monitoring, and energy consumption analysis. Importantly, the LED High-bay Light H200 has been awarded as the world's first high-power emergency driver in DALI 2.0, according to DALI Alliance verification in August 2022. This certification confirms its compatibility and compliance with DALI 2.0 standards.
Item | Part Number | H200/MT | H200/ST | H200/DALI |
Description | Integrated Microwave Sensor & Emergency Interface Highbay Light | |||
Working | Mode of Operation | Multimode - Maintained / Non-Maintained | ||
Voltage&Frequency | 220-240Vac, 50/60Hz | |||
Input | Installation | Suspending/wall mounted to meet different customer needs | ||
Light Source | High lumens SMD2835 | |||
Output | Color Temperature | MM=27-65 stands for 2700-6500K | ||
Luminous Flux | 150LM/W(R80) or 190LM/W(R70) ±10% | |||
Power Consumption | 200W,DIP switchable to150W/100W | |||
Beam Angle | 90°, one Angle can cover more than 90% of the marke | |||
Controls | Protection | Overcharge, low voltage disconnect, overcurrent, short circuit | ||
Multimode | 0-10V Dimming, Sensor and Emergency for optional | |||
Emergency | Charger | 16hr intelligent 3-stage charger with battery management system | ||
Emergency Power | 5W (Non-Maintained) | |||
Duration Time | > 180 minutes | |||
Testing Facility | Manual test, Self test, DALI2.0 | |||
Indicators | Battery charger green LED, Function failure through red LED. | |||
Physical | Construction | Diffuser - high transmission opal polycarbonate, chassis - Aluminum | ||
Mounting | Suspending/wall mounted | |||
Colour | Black | |||
Dimensions L x W x H | φ300mm x 87mm|Ekits-503: 380mm x 123mm x 57 mm | |||
IP Rating | IP65 | |||
Weight | 2.3kg| Ekits-503: 1.7kg | |||
Warranty | 5 years on product, 3 years on battery | |||
Environment | Operating Temperature | -40° to 50°C | ||
Relative Humidity | -10 to 95% | |||
Compliance | Standards | CE/UKCA/RCM, EN1838, IEC60598.1, AS/NZS 2293 | ||
AS/NZS 2293 Classification | C0 D125, C90 D80 | |||
Accessories | Microwave Dimming Sensor | P/N: H200-S: MC094-S03 | ||
Replacement Battery | P/N: BAT-One: LiFePO4 6.4V 4000mA |
Note: Product specifications subject to change without prior notice due to ongoing product improvement policy and changes to industry standard
HBL 200W Range (DIP switchable to150W/100W)
High Lighting efficiency: 150LM/W(R80) or 190LM/W(R70)
Suspending/wall mounted to meet different customer needs
Economical 5W3HRS (MT/ST/DALI) Emergency Kits with LiFePO4
Microwave radar induction/emergency interface/integrated design
HBL 200W Range (DIP switchable to150W/100W) of DALI-2 LED Highbay Light
Emergency LED Highbay Light Fixture With HBL 200W Range (DIP switchable to150W/100W)
Economical 5W3HRS (MT/ST/DALI) Emergency Kits with LiFePO4 of Emergency LED Highbay Light
With Suspending/wall mounted sensor LED Highbay Luminaire to meet the needs of different customer.
