Non-Maintained 3W Recessed Spitfire Emergency LED Light 360lm
  • Non-Maintained 3W Recessed Spitfire Emergency LED Light 360lmNon-Maintained 3W Recessed Spitfire Emergency LED Light 360lm
  • Non-Maintained 3W Recessed Spitfire Emergency LED Light 360lmNon-Maintained 3W Recessed Spitfire Emergency LED Light 360lm
  • Non-Maintained 3W Recessed Spitfire Emergency LED Light 360lmNon-Maintained 3W Recessed Spitfire Emergency LED Light 360lm
  • Non-Maintained 3W Recessed Spitfire Emergency LED Light 360lmNon-Maintained 3W Recessed Spitfire Emergency LED Light 360lm
  • Non-Maintained 3W Recessed Spitfire Emergency LED Light 360lmNon-Maintained 3W Recessed Spitfire Emergency LED Light 360lm

Non-Maintained 3W Recessed Spitfire Emergency LED Light 360lm

Fanxstar Xlite Series introduces a recess or surface-mounted non-maintained emergency LED light NNon-Maintained 3W Recessed Spitfire Emergency LED Light 360lm that fully complies with the Australian AS/NZS 2293 emergency standard, specifically Class D63. Utilizing the LUXEON 5050 from Lumileds, this LED emergency luminaire boasts a 70CRI rating, delivering an impressive lumen output of up to 360lm. Its hot-color targeting ensures LED reliability, even under demanding application conditions of up to 85°C.
This meticulously designed recess-mountable LED emergency light, named LED Spitfire, integrates a robust and luminous LED lamp combined with the innovative Kino.mo™ lens. This integration guarantees dependable and distinctive illumination, effectively mitigating panic and establishing a safe egress path during emergencies.
Tailored for recess mounting, this LED emergency lighting luminaire is equipped with a high-quality LiFe PO4 battery, ensuring a minimum duration of 180 minutes. Leveraging its extended lifespan and minimizes maintenance costs. Suited for high-traffic public buildings like retail stores, shopping centers, galleries, and council buildings, this LED Emergency Luminaire fitting comes with a comprehensive five-year warranty, underscoring our commitment to durability and customer satisfaction.

Send Inquiry

Product Description

NNon-Maintained 3W Recessed Spitfire Emergency LED Light 360lm

FANXSTAR D63 LED Recessed 2-in-1

NON-MAINTAINED EMERGENCY LED LIGHT Xlite X2

FANXSTAR emergency LED light Xlite X2 NNon-Maintained 3W Recessed Spitfire Emergency LED Light 360lm unites a lifetime-warranted ultra-bright LED with a Kinomo™ optical lens, high-quality LiFe PO4 battery delivering an inconspicuous yet powerful source of illumination crafted to mitigate panic and establish a clear, efficient egress path during emergencies. Emergency 3W and at least 180mins duration time, this award-winning emergency LED light features an architecturally-pleasing compact design, suitable for surface mounting onto solid surfaces or effortless retrofitting into existing luminaires. This LED emergency lighting fixtures designed with Manual Test , Self Test / Auto Test , DALI 2.0 for meeting varies of application need . Its versatility makes it suitable for various applications, including offices, shopping centers, commercial properties, and residential buildings.

With an enhanced optical system, the Xlite X2 emergency LED lighting complies with AS/NZS2293 standards, meeting D63 emergency requirements. Flexible duration time up to 8 hours , backed by a 5-year warranty, this emergency LED light is designed to offer long-term reliability and assurance, ensuring peace of mind for users across different settings.



FANXSTAR Emergency LED Lighting X2 NNon-Maintained 3W Recessed Spitfire Emergency LED Light 360lm Specification

Item Part Number Xlite X2/MT Xlite X2/ST Xlite X2/DALI
Description D63 LED Recessed 2-in-1 Non-Maintained Emergency Light
Working Mode of Operation Non-Maintained
Input Voltage&Frequency 220-240Vac, 30mA|50/60Hz
Installation Complete with 1.2m flex cable & plug
Output Light Source Lumileds LUXEON 5050 1x5W
Luminous Flux 360lm±10%
Power Consumption 2.5W(Standby)
Emergency Duration > 120 minutes
Controls Charger 16hr intelligent 3-stage charger with battery management system
Emergency Protection Overcharge, low voltage disconnect, overcurrent, short circuit
Testing Facility Manual test switch Self test DALI2.0
Indicators Battery charger green LED, Function failure through red LED.
Physical Construction UL94V0 Flame-retardant polycarbonate
Mounting Recessed - ceiling, 75 - 125mm cut-out
Colour Two colors for optional: white and black
Dimensions L x W x H Disc: 75mm or 145mm diameter, Height: 34mm
IP Rating IP20
Weight 295g
Warranty 5 years on product, 3 years on battery
Environment Operating Temperature 0° to 50°C
Relative Humidity 0 to 95%
Compliance Standards CE/UKCA/RCM, EN1838, IEC60598.1, AS/NZS 2293
AS/NZS 2293 Classification C0 D63, C90 D63
Accessories Replacement Battery P/N: BAT-ONE: LiFePO4 3.2V 3200mA

Note: Product specifications subject to change without prior notice due to ongoing product improvement policy and changes to industry standards.


FANXSTAR Emergency LED Lights X2 NNon-Maintained 3W Recessed Spitfire Emergency LED Light 360lm Feature And Application

3W D63 360lm LiFePO4 3.2V 3200mA

White, green, black tri-colors as options

Customized white surface without test & indicator

2-in-1 round design and low installation depth of only 34mm

Self-contained with full options: manual test, self-test, DALI2.0

Application:

All general applications including offices, shopping centers, commercial properties, and residential buildings


FANXSTAR Emergency LED Luminaire X2 Details

Emergency LED Light spitfire 3W D63 360lm LiFePO4 3.2V 3200mA

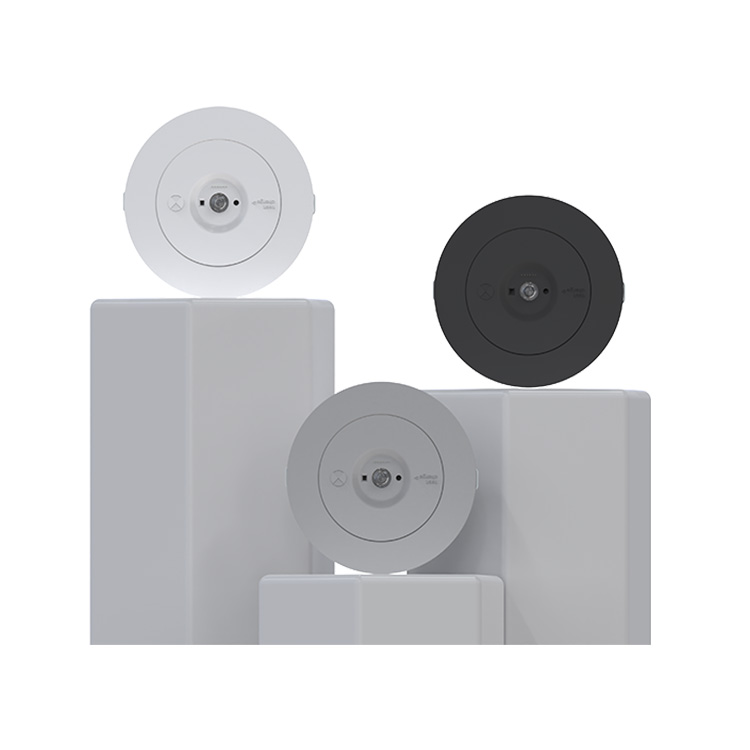

Emergency LED Light for White, green, black tri-colors as options

2-in-1 round design and low installation depth of only 34mm Emergency Lighting fixture

Emergency LED Light Self-contained with full options: manual test, self-test, DALI2.0


Emergency LED Lights X2 NNon-Maintained 3W Recessed Spitfire Emergency LED Light 360lm Dimensions


Emergency LED Lighting X2 NNon-Maintained 3W Recessed Spitfire Emergency LED Light 360lm Packing


Spacing Table of Emergency LED Lamp X2
