Track Mounted DALI-2 Emergency LED Track Light

Fanxstar proudly leads the Emergency LED track lights industry as a distinguished manufacturer and supplier in China, spotlighting our flagship product, the Tracklite T4—an embodiment of our commitment, featuring an exceptional Track mounted Emergency LED Light with LiFe PO4 battery backup, complemented by a high output emergency LED track light solution.
For the past 7 years, our steadfast dedication has been to deliver top-tier LED emergency luminaires at competitive prices to our valued clients. With a global presence spanning 90 countries and regions through our robust export network, we've firmly established ourselves worldwide. Our ongoing commitment revolves around proactive collaboration with partners and customers, aimed at consistently refining and innovating more adaptable, customized, and user-friendly LED emergency fixtures. This enduring commitment remains central to our mutually beneficial business model, emphasizing growth and stakeholder satisfaction as our primary objectives.

Send Inquiry

Product Description

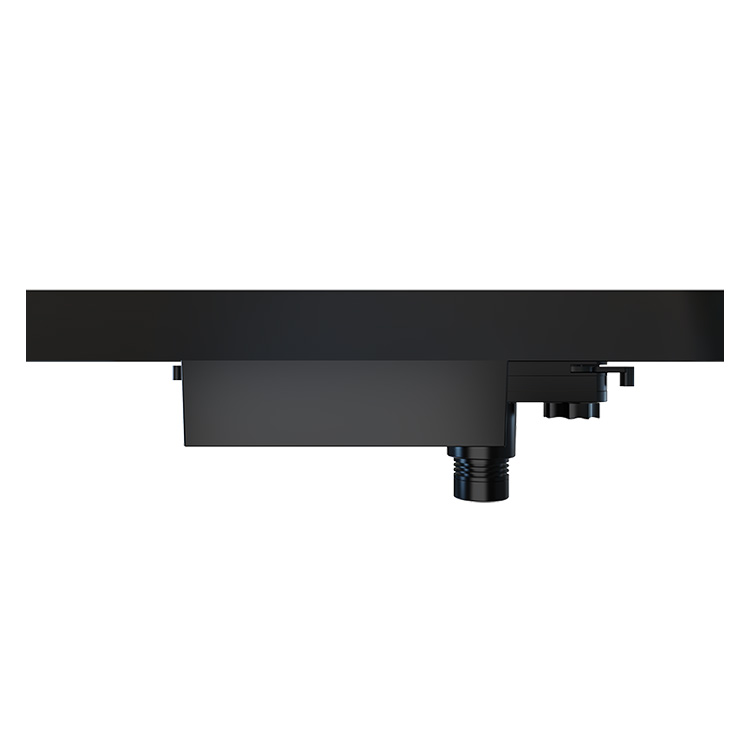

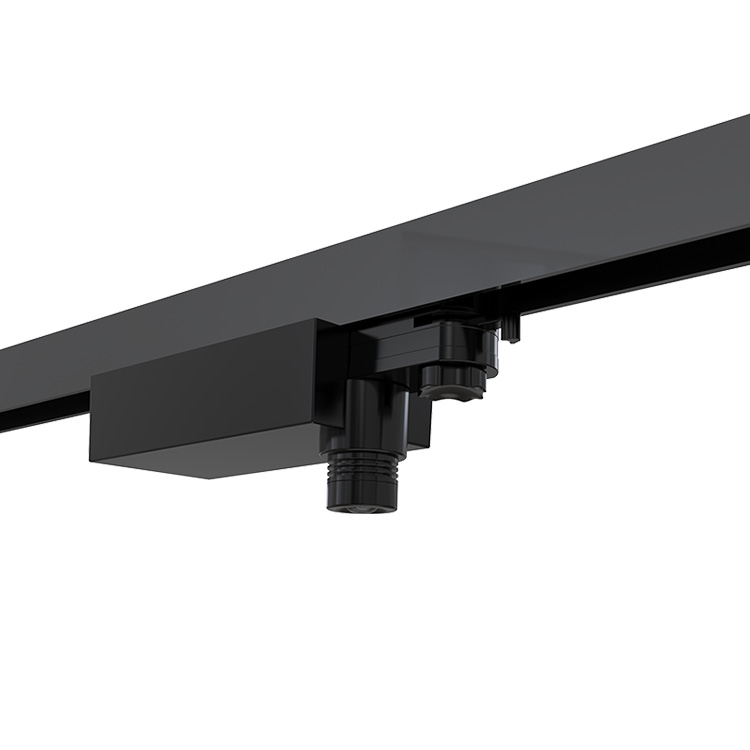

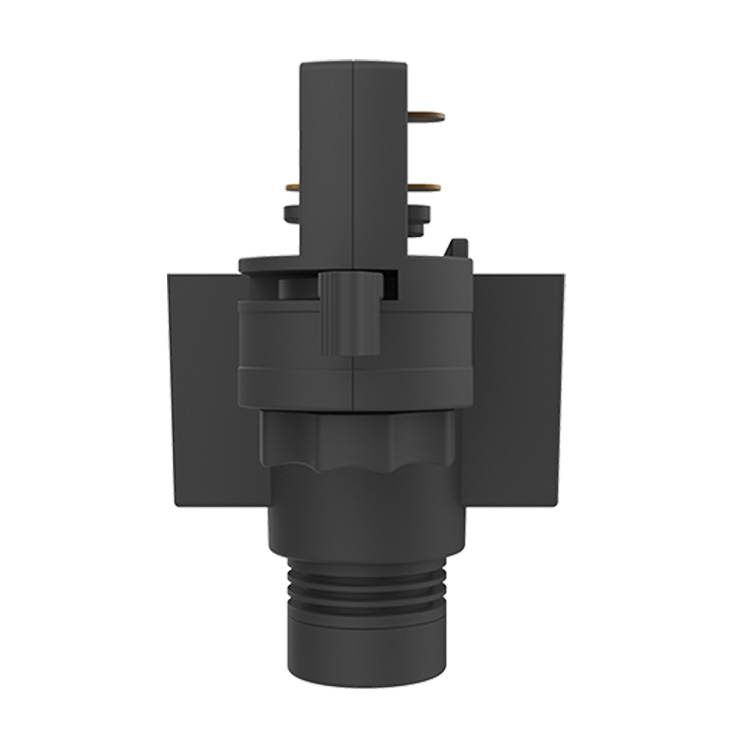

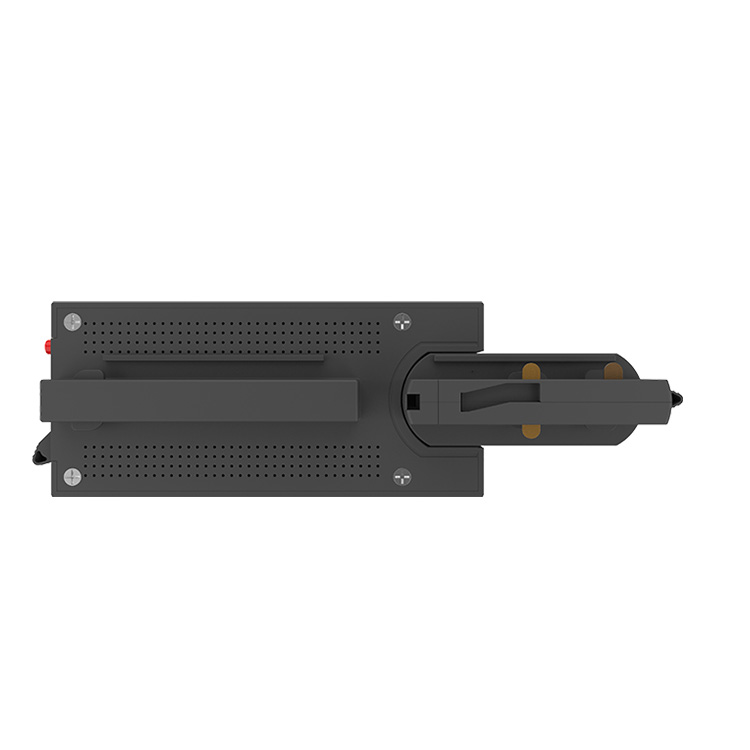

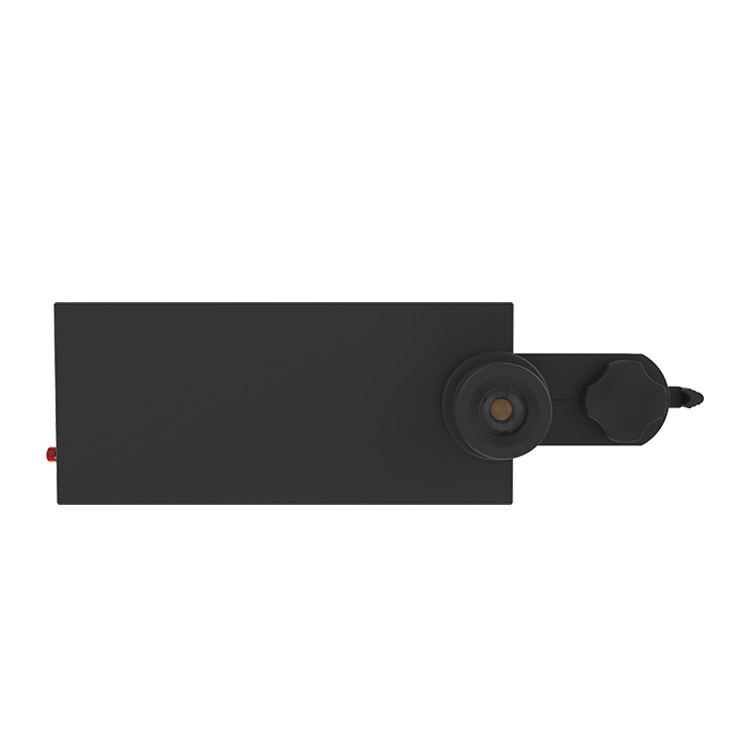

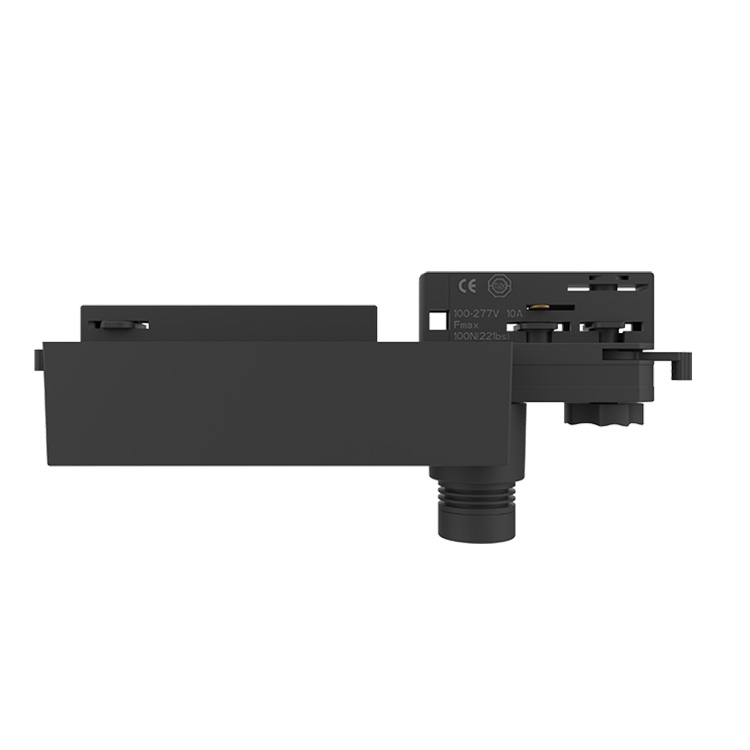

FANXSTAR D63（360lm） LED - TRACK MOUNTED

NON-MAINTAINED EMERGENCY LED LIGHT Tracklite T4

Fanxstar Tracklite T4/T6 Series represents a track mounted / non-maintained emergency LED light meticulously designed to adhere to the Australian AS/NZS 2293 emergency standard, specifically Class D63. Featuring the LUXEON 5050 from Lumileds, this LED track emergency luminaire offers a high CRI of 70 with an impressive lumen output reaching 330lm. Its hot-color targeting ensures LED reliability even under demanding conditions of up to 85°C.

Crafted with precision, this track-mountable LED emergency light combines a durable LED lamp backed by a lifetime warranty with the innovative Kino.mo™ lens, ensuring dependable and distinctive illumination. Its purpose is to mitigate panic and establish a secure egress path during emergencies.

The smart track-mountable design of the LED Track light leverages existing four-wire (3-phase) tracks, ensuring easy installation and minimal maintenance costs. Ideal for high-traffic public spaces like retail stores, shopping centers, galleries, and council buildings, this Emergency LED Track Light offers a five-year warranty, underscoring our commitment to reliability and customer satisfaction.

FANXSTAR Emergency LED Track Light T4 Specification

Item	Part Number	Tracklite T4/MT	Tracklite T4/ST	Tracklite T6/DALI
	Description	D63 LED Track Mounted Non-Maintained Emergency Light
Working	Mode of Operation	Non-Maintained
Input	Voltage&Frequency	220-240Vac, 30mA\|50/60Hz
	Installation	Track-mounted on 4-wire 3Phase track		6-wire 3Phase track
Output	Light Source	Lumileds LUXEON 5050 1x5W
	Luminous Flux	360lm±10%
	Power Consumption	2.5W(Standby)
	Emergency Duration	> 120 minutes
Controls	Charger	16hr intelligent 3-stage charger with battery management system
	Protection	Overcharge, low voltage disconnect, overcurrent, short circuit
Emergency	Testing Facility	Manual test switch Self test DALI2.0

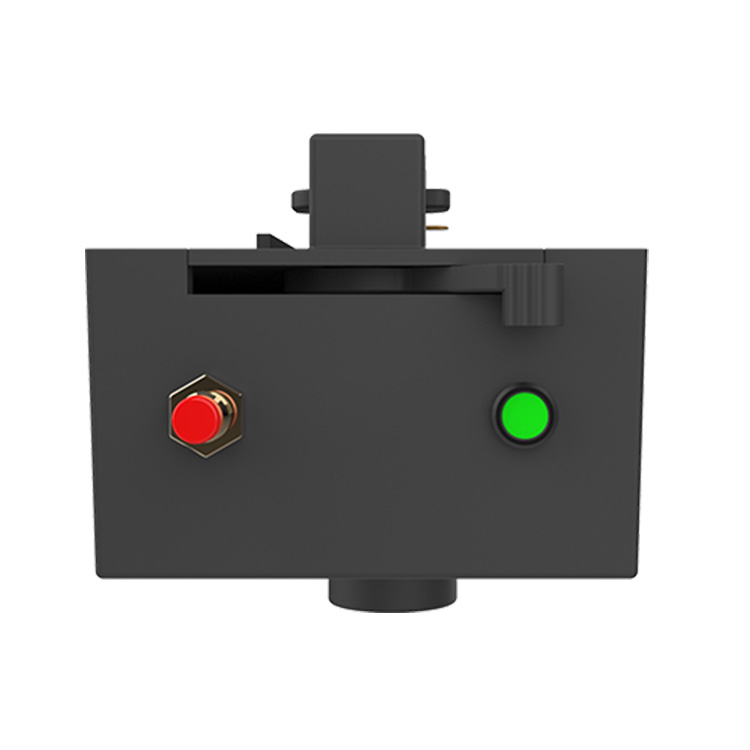

	Indicators	Battery charger green LED, Function display through red LED.
Physical	Construction	UL94V0 Flame-retardant polycarbonate
	Colour	Two colors for optional: white and black
	Dimensions L x W x H	225mm x 68mm x 103mm
	IP Rating	IP20
	Weight	365g
	Warranty	5 years on product, 3 years on battery
Environment	Operating Temperature	0° to 50°C
	Relative Humidity	0 to 95%
Compliance	Standards	CE/UKCA/RCM, EN1838, IEC60598.1, AS/NZS 2293
	AS/NZS 2293 Classification	C0 D63, C90 D63
Accessories	Replacement Battery	P/N: BAT-TRACK: LiFePO4 3.2V 3200mA
