DALI Emergency LED Track Light
  • DALI Emergency LED Track LightDALI Emergency LED Track Light
  • DALI Emergency LED Track LightDALI Emergency LED Track Light
  • DALI Emergency LED Track LightDALI Emergency LED Track Light
  • DALI Emergency LED Track LightDALI Emergency LED Track Light
  • DALI Emergency LED Track LightDALI Emergency LED Track Light
  • DALI Emergency LED Track LightDALI Emergency LED Track Light
  • DALI Emergency LED Track LightDALI Emergency LED Track Light
  • DALI Emergency LED Track LightDALI Emergency LED Track Light
  • DALI Emergency LED Track LightDALI Emergency LED Track Light

DALI Emergency LED Track Light

Fanxstar, a leading manufacturer and supplier of Emergency LED track lightsDALI Emergency LED Track Light in China, proudly presents the Tracklite T6 - a high-quality, track-mounted LED light equipped with a reliable LiFe PO4 battery backup and high-output emergency LED track light solution. For the past seven years, Fanxstar has been passionately dedicated to providing top-of-the-line LED emergency luminaires at highly competitive prices to clients across the globe. Through their extensive export network, Fanxstar has successfully established a global presence in 90 countries and regions. Fanxstar is fully committed to actively collaborating with partners and customers to continuously enhance and revolutionize LED emergency luminaires, making them more adaptable, customizable, and user-friendly. This unwavering dedication lies at the core of their mutually beneficial business model, with the primary goal of achieving growth and exceeding the expectations of all stakeholders.

Send Inquiry

Product Description
DALI Emergency LED Track Light

FANXSTAR D63(360lm) LED - TRACK MOUNTED

NON-MAINTAINED EMERGENCY LED LIGHT Tracklite T6

Fanxstar Tracklite T4/T6 Series represents a track mounted / non-maintained emergency LED light meticulously designed to adhere to the Australian AS/NZS 2293 emergency standard, specifically Class D63. Featuring the LUXEON 5050 from Lumileds, this LED track emergency luminaire offers a high CRI of 70 with an impressive lumen output reaching 330lm. Its hot-color targeting ensures LED reliability even under demanding conditions of up to 85°C.

Crafted with precision, this track-mountable LED emergency light combines a durable LED lamp backed by a lifetime warranty with the innovative Kino.mo™ lens, ensuring dependable and distinctive illumination. Its purpose is to mitigate panic and establish a secure egress path during emergencies.

The smart track-mountable design of the LED Track light leverages existing four-wire (3-phase) tracks, ensuring easy installation and minimal maintenance costs. Ideal for high-traffic public spaces like retail stores, shopping centers, galleries, and council buildings, this Emergency LED Track Light offers a five-year warranty, underscoring our commitment to reliability and customer satisfaction.


FANXSTAR Emergency LED Track Light T6 DALI Emergency LED Track LightSpecification

Item Part Number Tracklite T4/MT Tracklite T4/ST Tracklite T6/DALI
Description D63 LED Track Mounted Non-Maintained Emergency Light
Working Mode of Operation Non-Maintained
Input Voltage&Frequency 220-240Vac, 30mA|50/60Hz
Installation Track-mounted on 4-wire 3Phase track 6-wire 3Phase track
Output Light Source Lumileds LUXEON 5050 1x5W
Luminous Flux 360lm±10%
Power Consumption 2.5W(Standby)
Emergency Duration > 120 minutes
Controls Charger 16hr intelligent 3-stage charger with battery management system
Protection Overcharge, low voltage disconnect, overcurrent, short circuit
Emergency Testing Facility Manual test switch Self test DALI2.0

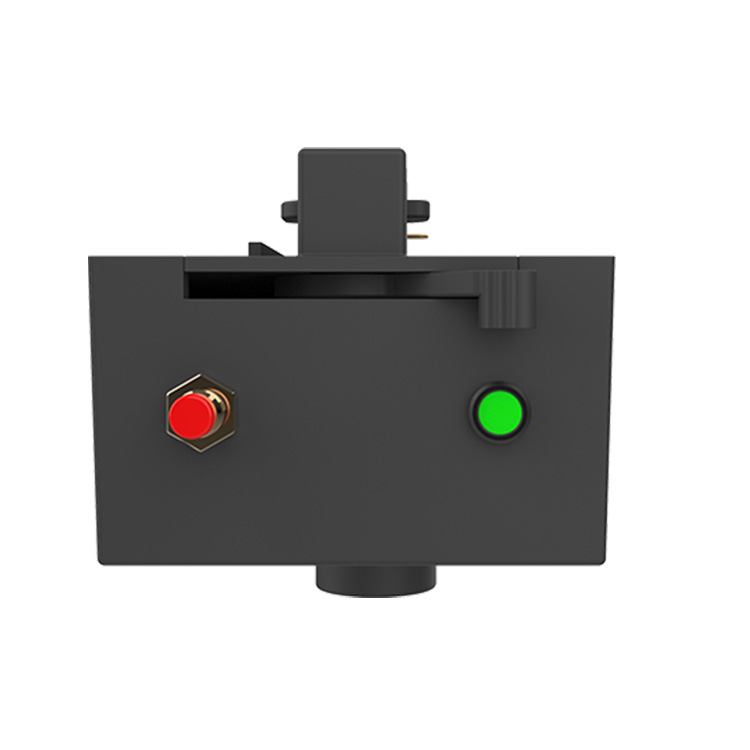

Indicators Battery charger green LED, Function display through red LED.
Physical Construction UL94V0 Flame-retardant polycarbonate
Colour Two colors for optional: white and black
Dimensions L x W x H 225mm x 68mm x 103mm
IP Rating IP20
Weight 365g
Warranty 5 years on product, 3 years on battery
Environment Operating Temperature 0° to 50°C
Relative Humidity 0 to 95%
Compliance Standards CE/UKCA/RCM, EN1838, IEC60598.1, AS/NZS 2293
AS/NZS 2293 Classification C0 D63, C90 D63
Accessories Replacement Battery P/N: BAT-TRACK: LiFePO4 3.2V 3200mA

Note: Product specifications subject to change without prior notice due to ongoing product improvement policy and changes to industry standards.


FANXSTAR Emergency Lights LED Track Light T6 DALI Emergency LED Track Light Feature And Application

Mask and lamp body two-in-one integrated design

Compliant to AS/NZS2293.3 standard

Up to D63 Emergency classification with 360lm

Combines super bright LUXEON 5050 with Kinomo™ lens

Self-contained with full options: manual test, self-test, DALI2.0

Universal track-mountable design for existing four/six-wire (3-phase) tracks for ease of installation and low maintenance costs


FANXSTAR Track Emergency LED Light T6 Details

Emergency Track Light Up to D63 Emergency classification with 360lm

Combines super bright LUXEON 5050 with Kinomo™ lens of LED Tack lamp

Self-contained with full options: manual test, self-test, DALI2.0 of Emergency LED Tack Light

LED Tack Light with Universal track-mountable design for existing four/six-wire (3-phase) tracks for ease of installation and low maintenance costs

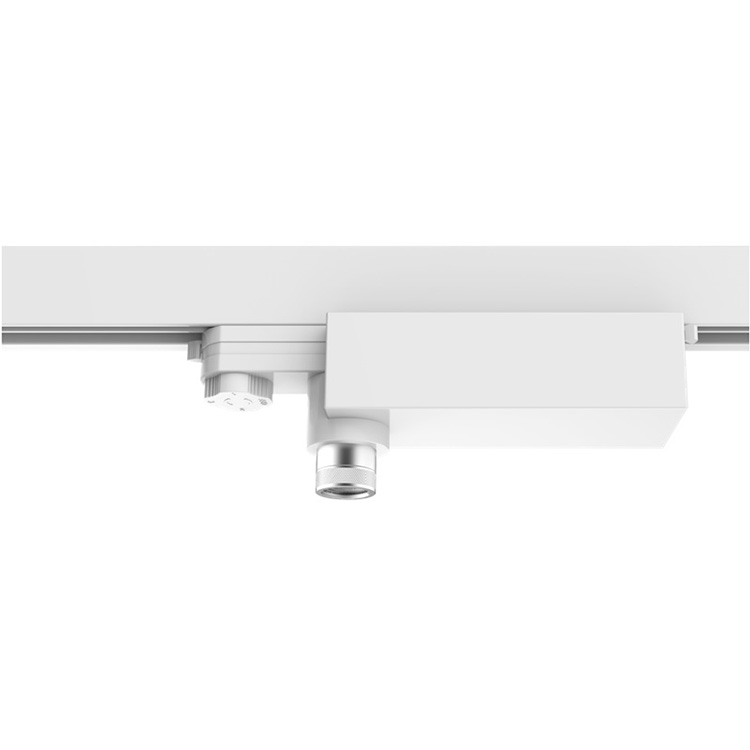

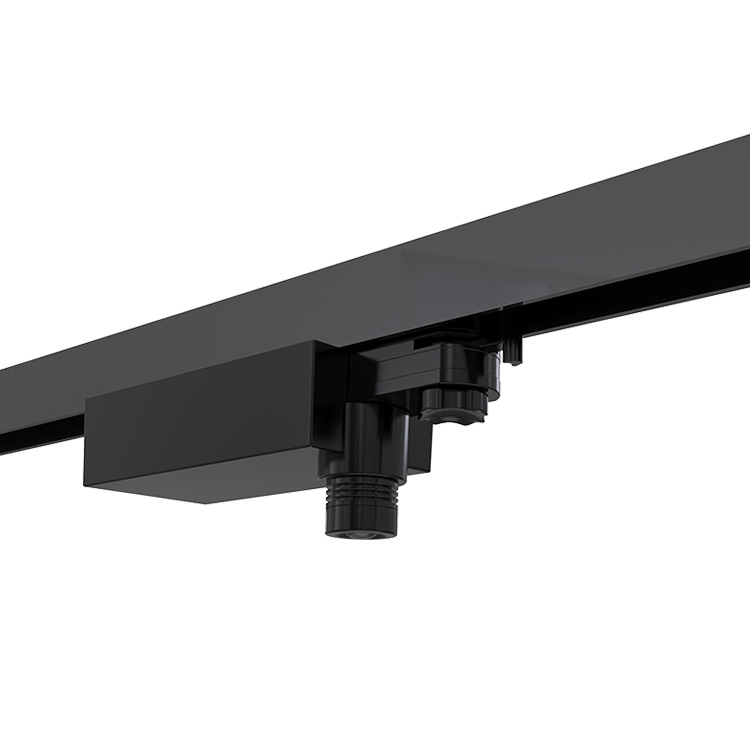

Emergency LED Track Light with Black and White available


Track Emergency LED Light T6 Dimensions


Track LED Emergency Lights T6 Packing


Spacing Table of Emergency LED Track Lights T6
